Hanwha Vision America

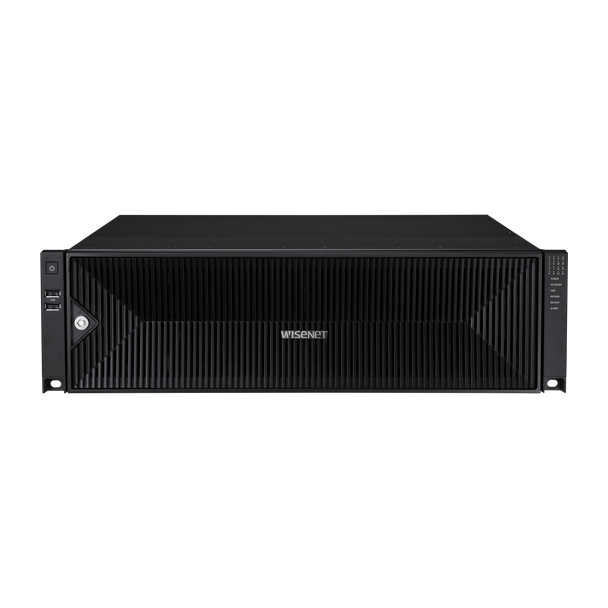

Hanwha Vision NVR, PRN-3200B4-12TB

(No reviews yet) Write a Review
SKU:
PRN-3200B4-12TB
UPC:
849688019351
MPN:
PRN-3200B4-12TB
Condition:
New
  • Hanwha Vision NVR, PRN-3200B4-12TB
  • Hanwha Vision NVR, PRN-3200B4-12TB
  • Hanwha Vision NVR, PRN-3200B4-12TB
MSRP: $10,547.00
Price: $6,855.55
— You save $3,691.45

Description

Hanwha Vision NVR, PRN-3200B4-12TB

8K NVR (Intel based), 12TB RAW, 32 channels, H.265, H.264, MJPEG, 16 fixed internal SATA HDDs (10TB max per HDD), RAID 5 & 6, ARB (Automatic Recovery Backup), 400 Mbps recording / up to 32 Mbps playback, Dual stream recording, WiseStream technology, HDMI/VGA dual display, max. resolution of 32MP recording/display and fisheye dewarping, add AI to some P, X and Q series Hanwha Cameras, web UI 2.0 (no plugins required), AI search (Wisenet AI cameras only), QR Code. NDAA & FCC Compliant Model.

  • 8K NVR, up to 32channels, License-free recording
  • Supports H.265, H.264, & MJPEG CODECs,
  • Up to 16 fixed internal SATA HDDs (10TB max per HDD), RAID 5 & 6 recording
  • ARB (Automatic Recovery Backup)
  • 400 Mbps recording / up to 32 Mbps playback
  • Dual stream recording, WiseStream technology
  • HDMI/VGA dual display, max. resolution of 32MP recording/display
  • Add AI search capabilities to select P, X and Q series Hanwha Cameras
  • AI search (Wisenet AI cameras only)
  • web UI 2.0 (no plugins required)
  • P2P / QR Code for easy connection to Wisenet Viewer / Wisenet Mobile
  • NDAA & FCC Compliant

Network camera



Network camera > Inputs

Max. 32CH

Network camera > Resolution

32MP ~ CIF

Network camera > Protocols

Wisenet, ONVIF

Decoding



Decoding > Local Display

[Dual Display] HDMI 1: 3840 x 2160 (30Hz) HDMI 2: 1920x1080 (60Hz)

Decoding > Multi Screen Display

[Local Monitor] - Dynamic layout, Virtual channel view - Clone Mode : Up to 36 Division - Expand Mode : HDMI1 up to 36 Div. HDMI2 up to 16 Div. [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9

Decoding > Resolution

32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(120fps), 1080p(480fps), 720P(960fps), D1(1920fps)

Performance



Operating System



Operating System > Embedded

Linux

Record



Record > Compression

H.265, H.264, MJPEG, WiseStream(H.265, H.264)

Record > Recording Bandwidth

Distributed mode : Up to 400 Mbps Normal mode : Up to 150 Mbps {RAID mode} Normal : Up to 400 Mbps Degrade/ Rebuild : Up to 320 Mbps

Record > Resolution

32MP ~ CIF

Record > Mode

Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark

Record > Event Trigger

Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event

Record > Event Action

e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shotdown

Search & Play



Search & Play > Playback Bandwidth

Max. 64Mbps(32CH simultaneously)

Search & Play > User

Max. 4 Users (Local 1, Remote 3)

Search & Play > Simultaneous playback

Max. 80CH(Local 32CH, Remote 16CH per user)

Search & Play > Fisheye Dewarping

Support (Local 1CH), CMS

Search & Play > Mode

Date & Time(Calendar), Event list, Text Search, Smart Search

Search & Play > Resolution

CIF ~ 32MP (Up to H.264 9MP, H.265 32MP)

Search & Play > Playback Control

Fast/Slow Forward / Backward, Move one step Up / Down

Storage



Storage > Supported HDD

Up to 10TB

Storage > HDD Slot

SATA 16ea(Max. 160TB, Non-RAID mode), Hot swap

Storage > External

iSCSI storage

Storage > RAID

RAID-5/6(Array Size : 8 HDD x 2 Array)

Backup



Backup > File backup

BU/Exe/AVI(GUI), JPG/AVI(Network)

Backup > Function

Multi channel(Up to 16CH) Play, Date-Time/Title display

Network



Protocol

IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)

DDNS

Hanwha DDNS

Transmission Bandwidth

Max. 400Mbps

Audio



Audio > Input/Output

32 CH(network)

Audio > Compression

G.711, G.726, AAC(16/48KHz)

Audio > Audio Communication

2-Way

Max Remote Users

Search(3), Live Unicast(10), Multicast(20)

Security

IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware

Web viewer



Web viewer > Supported OS

Windows 10, macOS 10.13

Web viewer > Supported browser

Google Chrome, Microsoft Edge, Mac Safari

Viewer Software

SSM, Webviewer, Smart Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3'rd party VMS

Functions



Camera Setup



Camera Setup > Register

Auto, Manual

Camera Setup > Item

IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage

PTZ



PTZ > Control

Via GUI, Webviewer, SPC-2000

PTZ > Preset

300 Presets

Smart phone



Smart phone > Support Model

iOS, Android

Smart phone > Protocol Support

RTP, RTSP, HTTP, CGI(SUNAPI)

Smart phone > Control

Live 16CH(Multi-Profile Support), Playback 4CH

Smart phone > Max. Remote Users

Search(3), Live Unicast(10)

Redundancy



Redundancy > Failover

N+1

Redundancy > ARB

Support

Easy configuration

P2P(QR code)

Interface



Front



Front > Indicator

HDD, Alarm, Power, Record, Backup, Network, RAID

Storage

OK

Reset

Power button

HDD Key Lock

OK

HDMI

2EA

Audio

Out 1EA (3.5mm Audio Jack)

Ethernet

RJ-45 3EA (LAN/WAN, 1Gbps)

Alarm

In 8EA, Out 4EA

USB

4EA(Front 2 x USB 2.0, Rear 2 x USB 3.0)

Power inlet

AC 1EA

System



Log



Log > Log List

Max. 100,000 (System Log, Event Log each)

System Control

Mouse, Keyboard, Web, Controller (SPC-2000)

Language

English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese

Environmental



Operating Temperature

0°C to +40°C(32 to 104)

Operating Humidity

20% ~ 85% RH

Electrical



Power Input

100 ~ 240 VAC ±10%; 50/60 Hz

Power Consumption

Max. 285W (972.5 BTU with HDD 16ea)

Mechanical



Color / Material

Black / Metal

Dimension (WxHxD)

440.0 x 132.0 x 571.1mm

Weight

Approx. 13.6Kg(30 lb, HDD not included)

Intelligent Analysis



AI Search



AI Search > Object Attribute

Person, Face(with Wisenet AI camera), Vehicle, Lisence plate

AI Search > LPR

English, Number (Wisenet AI, P/X Camera)
