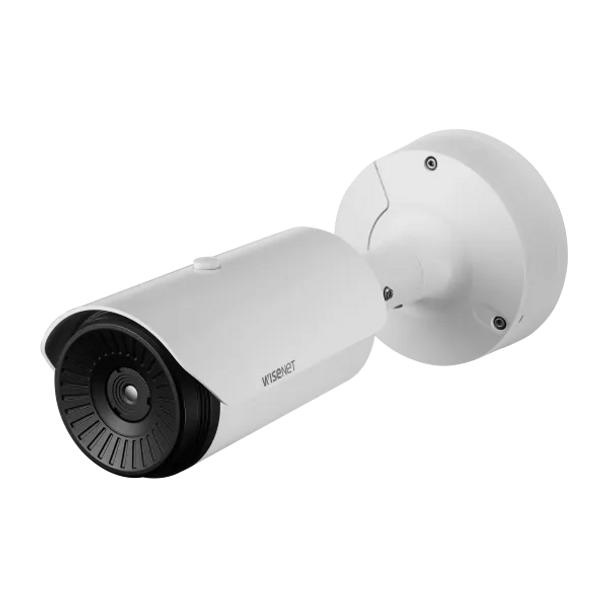

Hanwha Techwin QVGA Thermal Bullet, TNO-3030T

(No reviews yet) Write a Review
SKU:
TNO-3030T
UPC:
8801089191700
MPN:
TNO-3030T
Condition:
New
  • Hanwha Techwin QVGA Thermal Bullet, TNO-3030T
  • Hanwha Techwin QVGA Thermal Bullet, TNO-3030T
  • Hanwha Techwin QVGA Thermal Bullet, TNO-3030T
MSRP: $4,100.00
Price: $2,665.00
— You save $1,435.00

Description

Hanwha Techwin TNO-3030T Overview

Using an uncooled microbolometer, the white TNO-3030T QVGA Outdoor Thermal Network Camera from Hanwha Techwin captures 320 x 240 resolution thermal video at 30 fps. The camera's 13.7mm fixed lens delivers a 16° horizontal field of view. Two-way audio is possible thanks to an audio input and output. A built-in memory card slot supports microSD cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.

  • Thermal QVGA (320 x 240) resolution
  • Built-in 13.7mm fixed lens
  • 30fps@ll resolutions(H.265, H.264, MJPEG)
  • H.265, H.264, MJPEG triple codec support
  • WiseStream II support
  • 7 selectable color palettes
  • Tampering, Loitering, Directional / Virtual Fence Line detection, Enter/ Exit, (Dis) Appear, Audio detection, Motion detection, Sound classification, Shock detection, Temperature change detection
  • 2-way bi-directional audio & Alarm I/O support
  • SD / SDHC / SDXC memory slot (Maximum 256GB)
  • Operating temperature -40?F ~ +140?F
  • PoE, 24V AC, 12V DC / IP66, NEMA4X, IK10

Compliance with ONVIF profiles G, S, and T enables interoperability with a wide range of surveillance devices. This camera is housed in an IP66-, NEMA 4X-, and IK10-rated aluminum enclosure that is suitable for outdoor use in areas at risk of vandalism.

  • H.265, H.264, and MJPEG video codecs
  • WiseStream II support
  • Unicast and multicast streaming
  • Up to 20 users in unicast mode
  • CBR and VBR
  • Digital image stabilization with built-in gyro sensor
  • Analytics include; directional detection, motion detection (8 polygonal zones), appear/disappear, enter/exit, loitering, tampering, virtual line, audio detection, temperature detection, sound classification, and shock detection
  • Privacy masking for up to 32 polygonal zones
  • 100M Ethernet port
  • Audio input and output
  • Alarm input and output

QVGA Thermal camera, Max. 320 x 240 resolution support, built-in 13.7mm fixed lens, H.265, H.264, MJPEG codec, Max. 30fps@all resolutions, full video and audio analytics, temperature detection, shock detection, micro SD Max. 256GB, Hallway View, WiseStreamII, PoE, 24VAC, 12VDC / IP66, NEMA4X, IK10

Key Features
  • 320 x 240 Resolution at 30 fps
  • 13.7mm Fixed Lens
  • 16° Horizontal Field of View
  • Two-Way Audio
  • Supports microSD Cards up to 256GB
  • RJ45 Ethernet with PoE Technology
  • Complies with ONVIF Profiles G, S & T
  • NDAA Compliant
  • IP66 & NEMA 4X Rated for Outdoor Use
  • IK10-Rated Vandal Resistance
View AllClose

Detailed Specifications

Video



Imaging Device

Uncooled micro bolometer

Resolution

320x240

Max. Framerate

H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)

NETD

＜60mK

Pixel Size

12㎛

Video Out

CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB: Micro USB Type B, 1280x720 for installation

Lens

Focal Length (Zoom Ratio)

2.7mm fixed focal

Max. Aperture Ratio

F1.0

Angular Field of View

H:92.0˚, V:65.5˚, D:125.7˚

Min. Object Distance

0.3m(0.98ft)

Focus Control

Fixed

Operational

Camera Title

Displayed up to 85 characters

Digital Image Stabilization

Support(built-in gyro sensor)

Motion Detection

8ea, 8point polygonal zones

Privacy Masking

32ea, polygonal zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic

Video Rotation

Flip, Mirror, Hallway view(90˚/270˚)

Analytics

Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Temperature change detection, Sound classification, Shock detection

Alarm I/O

Input 1ea / Output 2ea

Alarm Triggers

Analytics, Network disconnect, Alarm input

Alarm Events

File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover

Audio In

Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm

Audio Out

Line out, Max.output level: 1Vrms

Color palettes

Whitehot, Blackhot, Rainbow, Rainbow2, Sepia, Red, Iron, Custom

Network

Ethernet

RJ-45(10/100BASE-T)

Video Compression

H.265/H.264: Main/Baseline/High, MJPEG

Audio Compression

G.711 u-law / G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz

Smart Codec

Manual(5ea area), WiseStreamⅡ

Bitrate Control

H.264/H.265: CBR or VBR MJPEG: VBR

Streaming

Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)

Protocol

IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP

Security

HTTPS(SSL) login authentication Digest login authentication IP address filtering User access log 802.1X authentication(EAP-TLS, EAP-LEAP) Device certificate(Hanwha Techwin Root CA)

Application Programming Interface

ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform

General

Webpage Language

English, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek

Edge Storage

Micro SD/SDHC/SDXC 1slot 256GB

Memory

1024MB RAM, 256MB Flash

Environmental & Electrical

Operating Temperature / Humidity

-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH

Storage Temperature / Humidity

-50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH

Certification

IP66, IK10, NEMA4X

Input Voltage

PoE(IEEE802.3af, Class3), 24VAC, 12VDC

Power Consumption

PoE: Max. 8.7W, typical 7.5W 12VDC: Max. 7.8W, typical 6.7W 24VAC: Max. 9.2W, typical 8.0W

Mechanical

Color / Material

White / Aluminum

RAL Code

RAL9003

Product dimensions / weight

Φ147.51x375.3mm(5.80x14.77") / 2512g(5.54lb)

DORI

Detect

(None)

Observe

(None)

Recognize

(None)

Identify

(None)
