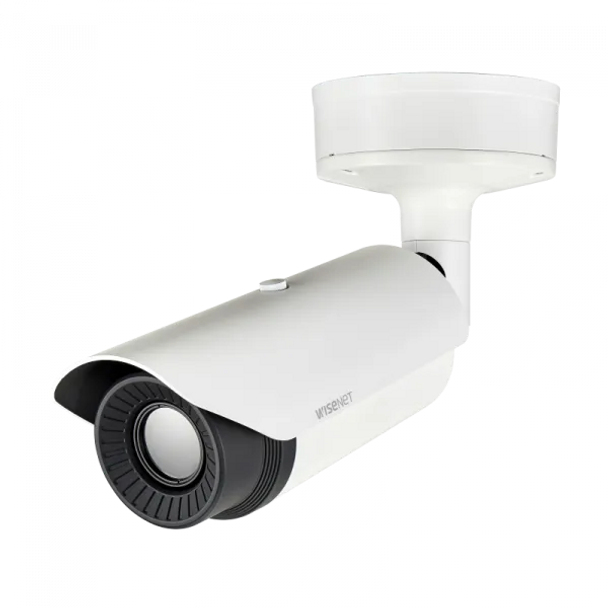

Name: Hanwha Techwin Outdoor Thermal Network Camera, TNO-4050T
Brand: Hanwha Vision America
SKU: TNO-4050T
Price: 5460 USD
Availability: InStock

Hanwha Techwin Outdoor Thermal Network Camera, TNO-4050T

(No reviews yet) Write a Review

SKU:

TNO-4050T

UPC:

8801089118462

MPN:

TNO-4050T

Condition:

New

Description
Detailed Specifications

Description

Hanwha Techwin TNO-4030T Overview

Using an uncooled microbolometer, the white TNO-4030T VGA Outdoor Thermal Network Bullet Camera from Hanwha Techwin captures 640 x 480 resolution thermal video at 30 fps. The camera's 13mm fixed lens delivers a 48.6° horizontal field of view. Two-way audio is possible thanks to an audio input and output. A built-in memory card slot supports SD cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.

Compliance with ONVIF profiles G and S enables interoperability with a wide range of surveillance devices. This vga outdoor thermal network camera is housed in an IP66-, NEMA 4X-, and IK10-rated aluminum enclosure that is suitable for outdoor use in areas at risk of vandalism.

H.265, H.264, and MJPEG video codecs
WiseStream II support
Unicast and multicast streaming
Up to 20 users in unicast mode
CBR and VBR
Digital image stabilization with built-in gyro sensor
Analytics include; tampering, loitering, directional/virtual line detection, enter/exit, appear/disappear, audio detection, motion detection (8 polygonal zones), sound classification, shock detection, and temperature change detection
Privacy masking for up to 32 polygonal zones
100M Ethernet port
Audio input and output
FCC, cUL, and CE certified
High resolution thermal VGA (640 x 480) resolution
Built-in 35mm fixed lens
30fps@all resolutions(H.265, H.264, MJPEG)
H.265, H.264, MJPEG triple codec support
WiseStream II support
Tampering, Loitering, Directional / Virtual Fence Line detection, Enter/ Exit, (Dis) Appear, Audio detection, Motion detection, Sound classification, Shock detection, Temperature change detection
2-way bi-directional audio & Alarm I/O support
SD / SDHC / SDXC memory slot (Maximum 256GB)
Operating temperature -40?F ~ +140?F
PoE, 24V AC, 12V DC / IP66, NEMA4X, IK10

Wisenet T network outdoor vandal thermal bullet camera (uncooled), 640x480 @ 30fps, 35mm fixed focal lens (17.2°), triple codec H.265/H.264/MJPEG with Wisestream II, SD card, advanced video analytics and sound classification, PTZ handover, open platform, DIS(Gyro), integrated back box, IP66, IK10, PoE/12VDC/24VAC, white color

Key Features

640 x 480 Resolution at 30 fps
13mm Fixed Lens
48.6° Horizontal Field of View
Two-Way Audio
Supports SD Cards up to 256GB
RJ45 Ethernet with PoE Technology
Complies with ONVIF Profiles G & S
NDAA Compliant
IP66 & NEMA 4X Rated for Outdoor Use
IK10-Rated Vandal Resistance

View AllClose

Detailed Specifications

Hanwha Techwin TNO-4030T Specs

Video

Imaging Device	Uncooled Microbolometer
Effective Pixels (H x V)	640 x 480
Pixel Size	17 µm
Thermal Sensitivity (NETD)	<50 mK
Spectral Range	8 to 14 µm
Video Out	CVBS: 1.0 V p-p / 75 Ohms Composite, 720 x 480 for Installation USB: Micro-USB Type B, 1280 x 720 for Installation

Lens

Focal Length	13mm
Mount Type	Board-In Type
Aperture	f/1.0
Field of View	Horizontal: 48.6° Vertical: 36.4° Diagonal: 61.6°
Minimum Object Distance	16.4' / 5 m
Focus Control	Fixed

Operational

Camera Title	Off/On English, Numeric, Special Characters, International Characters, Multiline (Maximum 5), Color (Gray, Green, Red, Blue, Black, White), Transparency, Auto Scale by Resolution
Motion Detection	8 Each, 8-Point Polygonal Zones, Handover
Privacy Masking	32 Polygonal Zones Color: Gray, Green, Red, Blue, Black, White Mosaic
Flip/Mirror	Off/On, Hallway (90/270°)
Analytics	Tampering, Loitering, Directional/Virtual Line Detection, Enter/Exit, Appear/Disappear, Audio Detection, Motion Detection, Sound Classification, Shock Detection, Temperature Change Detection
Alarm I/O	1 x Alarm Input 2 x Alarm Outputs
Digital Image Stabilization	Supported (Built-In Gyro Sensor)
Alarm Triggers	Alarm Input, Motion Detection, Video & Audio Analytics, Network Disconnect
Alarm Events	File Upload via FTP & Email Notification via Email microSD/SDHC/SDXC or NAS Recording at Event Triggers Alarm Output Handover
Pixel Count	Supported

Network

Ethernet	100M RJ45
Video Compression	H.265/H.264 (MPEG-4 Part 10/AVC): (Main, Baseline, High), MJPEG
Resolution	640 x 480, 640 x 360, 320 x 240
Maximum Frame Rate	H.265/H.264: Maximum 30 fps MJPEG: Maximum 30 fps
Smart Codec	Manual (5 Each Area), WiseStream II
Video Quality Adjustment	H.265/H.264/MJPEG: Target Bitrate Level Control
Bit Rate Control	H.264/H.265: CBR or VBR MJPEG: VBR
Audio In	Selectable (Microphone In/Line In) Supply Voltage: 2.5 VDC (4 mA) Input Impedance: 2 Kilohms
Audio Out	Line Out, Maximum Output Level: 1 Vrms
Audio Compression	G.711 u-law/G.726 Selectable G.726 (ADPCM) 8 kHz, G.711 8 kHz G.726: 16, 24, 32, 40 kb/s AAC-LC: 48 kb/s at 8, 16, 32, 48 kHz
Streaming	Unicast (20 Users)/Multicast Multiple Streaming (Up to 10 Profiles)
Protocols	IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour
Security	HTTPS (SSL) Login Authentication Digest Login Authentication IP Address Filtering User Access Log 802.1X Authentication (EAP-TLS, EAP-LEAP)
Edge Storage	Supports SD/SDHC/SDXC Cards up to 256 GB, NAS, Local PC for Instant Recording
API	ONVIF Profiles G & S SUNAPI (HTTP API) Open Platform
Languages	English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Web Viewer	Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Supported Browsers: Chrome 63, Edge 41, Internet Explorer 11, Firefox 57 (Windows 64-Bit Only), Safari (Mac OS X Only)
CMS	Wisenet WAVE, SmartViewer, SSM

General

Operating Conditions	-40 to 140°F / -40 to 60°C Less than 90% Relative Humidity
Storage Conditions	-50 to 140°F / -58 to 60°C Less than 90% Relative Humidity
IP Rating	IP66
NEMA Rating	NEMA 4X
IK Rating	IK10
Input Voltage	PoE 802.3af Class 3, 24 VAC ±10%, 12 VDC ±10%
Power Consumption	PoE: Maximum 10 W 12 VDC: Maximum 9 W 24 VAC: Maximum 10.5 W
Material	Aluminum
Dimensions	5.81 x 15.82" / 147.51 x 401.8 mm
Weight	7 lb / 3.175 g
