Hanwha Vision America

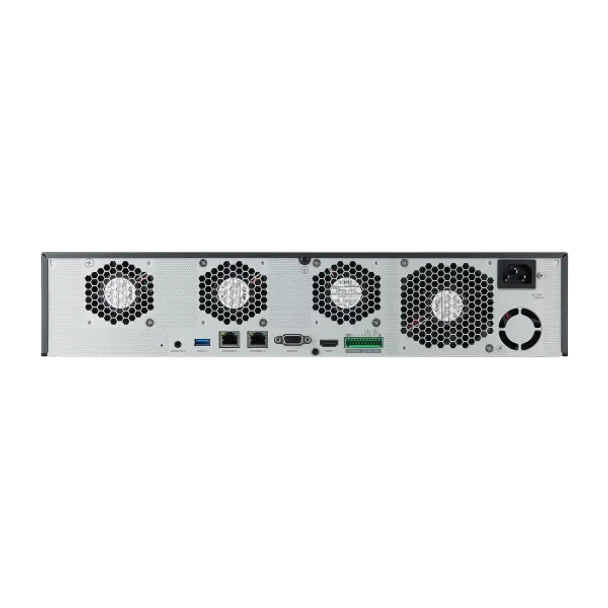

Hanwha Techwin NVR, XRN-1620B2-12TB
- SKU:
- XRN-1620B2-12TB
- UPC:
- 849688017593
- MPN:
- XRN-1620B2-12TB
- Condition:
- New
Description
Hanwha Techwin NVR, XRN-1620B2-12TB
- Up to 16 channels, Supports up to 32 megapixel camera resolution
- 140Mbps network camera recording
- Support 4K video out on HDMI monitor
- Support dual monitor HDMI/VGA video out
- H.265, H.264, MJPEG compression
- WiseStream support
- Maximum 8 internal HDDs (80TB)
- ARB & failover (N+1), dynamic event, Wisenet AI metadata search support
8K NVR (Intel based), 12TB RAW, 16 channels, H265,H264, MJPEG, 8 fixed internal SATA HDDs (10TB max per HDD), ARB (Automatic Recovery Backup), 140 Mbps recording / up to 32 Mbps playback, Dual stream recording, WiseStream technology, HDMI/VGA dual display, max. resolution of 32MP recording/display and fisheye dewarping on web and CMS, web UI 2.0 (no plugins required), AI search (Wisenet AI cameras only), QR Code
Detailed Specifications
|
Video |
|
|
Imaging Device |
1/2.3" 12MP CMOS |
|
Resolution |
Original view(1:1): 3008x3008~480x480, Double panorama(2:1): 3584x1792~640x320, Single panorama(4:1): 3584x896~640x160, Quad view: 3584x2688~640x480, Q1/Q2/Q3/Q4(4:3): 1792x1344~640x480 |
|
Max. Framerate |
H.265/H.264: Original view-Max.30fps/25fps@3008x3008(60Hz/50Hz), Double panorama-Max.30fps/25fps@3584x1792(60Hz/50Hz) Single panorama-Max.30fps/25fps@3584x896(60Hz/50Hz) MJPEG: Max.30fps/25fps@1080x1080(60Hz/50Hz) |
|
Min. Illumination |
Color: 0.39 Lux (F2.2, 1/30sec), BW : 0Lux(IR LED on) |
|
Video Out |
CVBS : 1.0 Vp-p / 75? composite, 720x480(N), 720x576(P), for Installation USB: Micro USB Type B, 1280x720 for installation |
|
Lens |
|
|
Focal Length (Zoom Ratio) |
1.08mm fixed focal |
|
Max. Aperture Ratio |
F2.2 |
|
Angular Field of View |
H: 187? / V: 187? / D: 187? |
|
Min. Object Distance |
0.5m(1.64ft) |
|
Focus Control |
Simple focus |
|
Operational |
|
|
Camera Title |
Displayed up to 85 characters |
|
Day & Night |
Auto(ICR) |
|
Backlight Compensation |
BLC, HLC, WDR, SSDR |
|
Wide Dynamic Range |
extremeWDR (120dB) |
|
Digital Noise Reduction |
SSNR? |
|
Motion Detection |
8ea, 8point polygonal zones |
|
Privacy Masking |
32ea, polygonal zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic |
|
Gain Control |
Low / Middle / High |
|
White Balance |
ATW / Narrow ATW / AWC / Manual / Indoor / Outdoor |
|
Electronic Shutter Speed |
Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
|
Digital PTZ |
Support(Preset, Group) |
|
Video Rotation |
Flip, Mirror |
|
Analytics |
Defocus detection, Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification |
|
Business Intelligence |
People counting, Queue management, Heatmap |
|
Alarm I/O |
2 configured I/O |
|
Alarm Triggers |
Analytics, Network disconnect, Alarm input |
|
Alarm Events |
File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output PTZ Preset Handover Audio playback |
|
Audio In |
Selectable(mic in/line in/built-in mic) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
|
Audio Out |
Line out, Max. output level: 1Vrms |
|
IR Viewable Length |
10m(32.8ft), Wise IR |
|
Network |
|
|
Ethernet |
Metal shielded M12 (through RJ45 to M12 cable) |
|
Video Compression |
H.265/H.264: Main/Baseline/High, MJPEG |
|
Audio Compression |
G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
|
Smart Codec |
Manual(5ea area), WiseStream? |
|
Video Quality Adjustment |
H.264/H.265: Target bitrate level control MJPEG: Quality level control |
|
Bitrate Control |
H.264/H.265: CBR or VBR MJPEG: VBR |
|
Streaming |
Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
|
Protocol |
IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast) |
|
Security |
HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) Device Certificate(Hanwha Techwin Root CA) |
|
Application Programming Interface |
ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
|
General |
|
|
Webpage Language |
English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
|
Edge Storage |
Micro SD/SDHC/SDXC 2slot 1TB(512GBx2) |
|
Memory |
4096MB RAM, 512MB Flash |
|
Environmental & Electrical |
|
|
Operating Temperature / Humidity |
-40?C ~ +60?C (-40?F ~ +140?F) / Less than 95% RH |
|
Storage Temperature / Humidity |
-50?C ~ +60?C(-58?F ~ +140?F) / Less than 95% RH |
|
Certification |
IP66, IK10, NEMA4X, EN50155 class T3 EN45545-2, NFPA130, BSS7239 |
|
Input Voltage |
PoE(IEEE802.3af, Class3), 12VDC |
|
Power Consumption |
PoE: Max 12.95W, typical 11W 12VDC: Max 11W, typical 9.1W |
|
Mechanical |
|
|
Color / Material |
White / Aluminum, Hard-coated dome |
|
RAL Code |
RAL9003 |
|
Product Dimensions / Weight |
?160x72mm(62.99x28.35"), 1100g(2.43lb) |
|
Hanging Mount (Dome) |
SBP-167HMW |
|
DORI (EN62676-4 standard) |
|
|
Detect (25PPM/ 8PPF) |
34.9m(114.49ft) |
|
Observe (63PPM/ 19PPF) |
13.9m(45.60ft) |
|
Recognize (125PPM/ 38PPF) |
7.0m(22.96ft) |
|
Identify (250PPM/ 76PPF) |
3.5m(11.48ft) |
