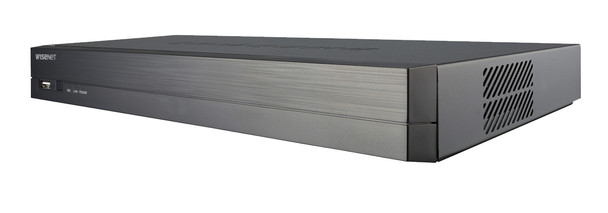

Hanwha Techwin NVR with PoE+, XRN-810S

Video Input

Up to 8 channels

Video Resolution

CIF to 8 MP

Protocols

Samsung, ONVIF

Interface

HDMI
VGA

Resolution

Local Monitor: 8 MP at 60 fps; 5 MP at 90 fps; 3 MP at 120 fps; 2 MP at 240 fps; 720p at 240 fps; D1 at 240 fps

Multi-Screen Display

Local Monitor: 1 / 2V / 3V / 4 / 6 / 8 / auto sequence
Web: 1 / 4 / 8 / auto sequence

Operating System

Embedded Linux

Recording Compression

H.265, H.264, MJPEG, WiseStream (H.265, H.264)

Recording Resolution

CIF to 8 MP

Bandwidth

Recording: 100 Mbps
Transmission: 128 Mbps

Recording Mode

Manual, schedule (continuous/event), event (pre/post)

Event Trigger

Alarm input x 4, video loss, camera event (sensor, MD, video analytics, defocus)

Event Action

Email, PTZ preset, alarm out, buzzer, monitor out

Playback

32 Mbps, 8 channels simultaneously

User Limit

3 users (1 local, 3 remote)

Search Modes

Date & time (calendar), event log list, text search (POS, ANPR), ARB search, smart search (virtual-line with direction, enter/exit)

Playback Control

Fast/slow, forward/backward, move one step up/down

Internal HDD

2 SATA ports, capacity up to 12 TB (HDDs available separately)

External HDD

eSATA/iSCSI storage

Sensor

4 x inputs
3 x outputs

Video File Backup

USB: BU, EXE
Web/CMS: JPEG, AVI

Audio

8-channel input (network)
1 x RCA, output

Audio Compression

G.711, G.726, AAC (16/48 kHz)

Audio Communication

2-way

Protocol Support

TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (server, client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, UPnP, HTTPS, SNMP, ONVIF (Profile S), SUNAPI (server, client)

DDNS

Hanwha security DDNS

Max. Remote Users

Search: 3
Live Unicast: 10
Live Multicast: 20

IP

IPv4, IPv6

Security

IP address filtering, user access log, 802.1x authentication, encryption

Language

GUI/Web: English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Romanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese (simplified), Japanese, Thai

OS Supported

Windows 7, 8, 10
Mac OS X 10.8, 10.9, 10.10, 10.11

Supported Web Browsers

Non-Plugin: Google Chrome 47, Microsoft Edge 20
Plugin: Microsoft Internet Explorer 11, Mozilla Firefox 43, Apple Safari 9 (Mac OS X only)

Viewer

Software Type: SSM, Webviewer, SmartViewer, Wisenet mobile
CMS Support: SDK/CGI (SUNAPI)

Camera Setup

Register: PnP mode, manual mode
Setup Items: IP address, add profile edit, bit rate, compression, GOP, quality, camera MD setup, camera video setup (simple focus, brightness/contrast, flip/mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), fish-eye dewarping (web), hallway view setup, camera webpage

Camera Control

Monitor PoE power consumption, on/off control for each PoE camera, remote reset for each PoE camera

Configuration

Setup wizard (date/time, network, auto camera configuration), P2P (QR code)

Redundancy

ARB

PTZ

Control via GUI/Webviewer
255 presets

Smart Phone

OS: iOS & Android
Protocol Support: RTP, RTSP, HTTP, CGI (SUNAPI)
Live 8-Channel Control: Multi-profile support; playback - 1 channel
Maximum Remote Users: Search - 3; live unicast - 10; live multicast - 20

System Control

Mouse, IR remote control, Web

Indicators

HDD action, alarm, power, record, backup, network

Connector / Interface

1 x VGA, video output
1 x HDMI, video output
1 x RCA, audio output
8 x PoE/PoE+ ports (100 Mbps)
1 x WAN port (1 Gbps)
4 x alarm inputs
3 x alarm outputs
1 x USB 3.0 on rear panel
1 x USB 2.0 on front panel
1 x reset switch
1 x VAC power
1 x power on/off switch

System Log

Log List: 20,000 max. (for each system log & event)

Power Supply

100-240 VAC, ±10%

Power Consumption

Maximum: 19 W

Working Environment

32 to 104°F (0 to 10°C)
20-85% RH

Rack Mount

1 RU

Dimensions

14.57 x 12.6 x 1.73" (37 x 32 x 4.4 cm)

Weight

7.4 lb (3.4 kg), with 2 TB HDD

Package Weight

10.15 lb

Box Dimensions (LxWxH)

20.5 x 16.7 x 6.9"
