Hanwha Vision America

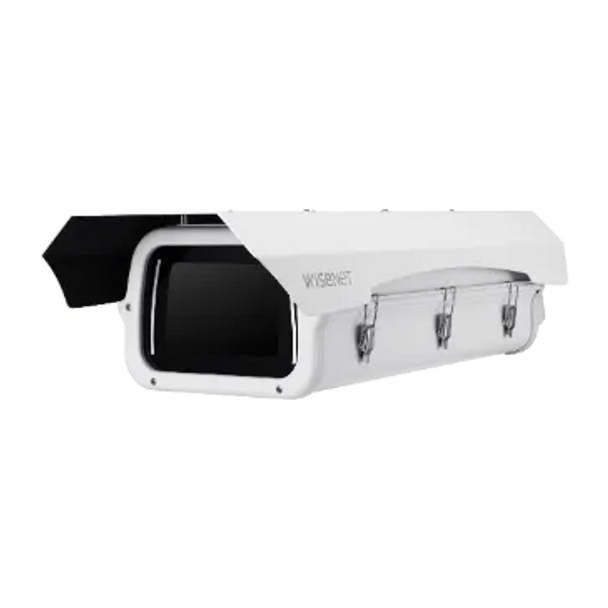

Hanwha Techwin Box Camera (TNB-9000) Housing, SHB-9000H

(No reviews yet) Write a Review

SKU:: SHB-9000H
UPC:: 8801089190956
MPN:: SHB-9000H
Condition:: New

MSRP: $2,925.00

Price: $1,901.25

— You save $1,023.75

Current Stock:

Quantity:

Description
Detailed Specifications

Description

Hanwha Techwin Box Camera (TNB-9000) Housing, SHB-9000H

Compatible camera: TNB-9000
Box camera housing materials:
- Body/Sun shield : Aluminum
- Front and Rear cap : ABS
Operating Temperature: -50⁰C ~ +60⁰C(-58⁰F ~ +140⁰F) / 10-100% RH (condensing)
Weight: 6.2kg(13.67 lb)
Color: White IP66

TNB-9000 Box Camera Housing, Body/Sun shield : Aluminum, Front & Rear cap : ABS. Wall Mount Arm Included. Operating Temperature: -50°C ~ +60°C(-58°F ~ +140°F) / 10-100% RH (condensing), Weight: 6.2kg(13.67 lb), Color: White, IP66. Input Voltage 110vac, Thermostat controlled Fan and heater - UL 62368-1 Certified

View AllClose

Detailed Specifications

Environmental
Operationg Temperature / Humidity	-50°C ~ +60°C(-58°F ~ +140°F) / 10-100% RH (condensing)
Storage Temperature / Humidity	-50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
Fan/Heater	Support (Thermostat controlled)
Certification	IP66
Electrical
Input Voltage	220VAC
Power Consumption	AC Fan(10W): 5W * 2EA AC Heater(50W): 3.7W[Max.25W] * 2EA
Mechanical
Color	White
RAL Code	None
Material	Body/Sun shield : Aluminum Front&Rear cap : ABS
Product dimensions / weight	300(W)x184(H)x700(D)mm(11.81x7.24x27.56"), 6.2kg(13.67 lb)
Tile thickness	None
Mount Screw size	None
Max. load	None
Conduit hole	None
Supported products	Camera : TNB-9000 Lens : Canon 24mm f1.4L, Auto-Iris, Canon 35mm f1.4L, Auto-Iris, Canon 50mm f1.4, Auto-Iris, Canon 85mm f1.2L, Auto-Iris, Canon 100mm f2.0, Auto-Iris, Canon 200mm f2.8L, Auto-Iris
