Hanwha Vision America

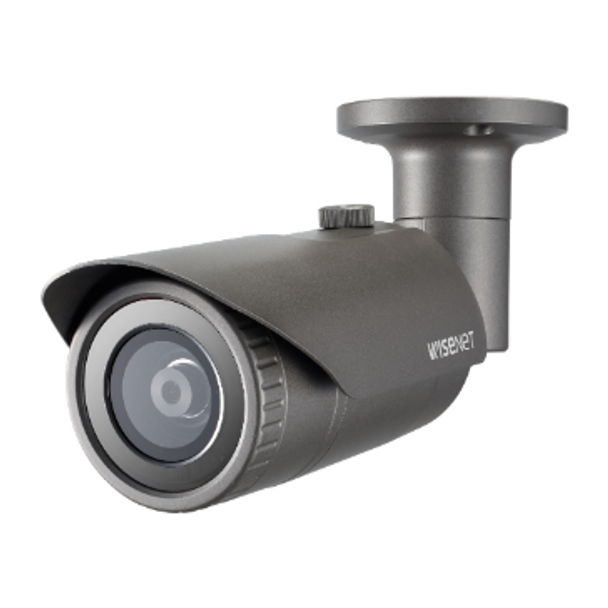

Hanwha Techwin 5MP with 2.8MM Lens Outdoor Vandal Resistant Bullet Network Camera, QNO-8010R

(No reviews yet) Write a Review
SKU:
QNO-8010R
UPC:
8801089163332
MPN:
QNO-8010R
Condition:
New
MSRP: $470.00
Price: $305.50
— You save $164.50

Description

Hanwha Techwin QNO-8010R Overview

Monitor an outdoor area with the dark gray QNO-8010R 5MP Network Bullet Camera from Hanwha Techwin. This unit uses a 1/2.8" progressive scan CMOS sensor to capture 2592 x 1944 resolution video at 30 fps. IR LEDs provide up to 65' of night vision. The camera's 2.8mm fixed lens delivers a 104.7° horizontal field of view. An onboard memory card slot accepts microSD/SDHC/SDXC cards up to 128GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.

This bullet camera complies with ONVIF profiles G, S & T, making it compatible with a wide range of surveillance devices. It is housed in an IP66- and IK10-rated aluminum enclosure for safe outdoor use in areas at risk of vandalism.

  • IR cut filter for day and night functionality
  • H.265, H.264, and MJPEG video codecs
  • WiseStream II support
  • Triple streaming
  • Unicast and multicast streaming
  • Up to six users in unicast mode
  • CBR and VBR
  • Electronic shutter
  • 3-axis angle adjustments
  • Lens distortion correction
  • 120 dB wide dynamic range
  • Digital noise reduction (SSNR)
  • Gain control
  • White balance modes include ATW, AWC, manual, indoor, and outdoor
  • Motion detection for up to four polygonal zones
  • Privacy masking for up to six rectangular zones
  • Flip, mirror, and hallway view (90/270°) support
  • Analytics include defocus detection, directional/virtual line detection, motion detection, enter/exit, and tampering
  • 100M Ethernet port
  • CVBS video output
  • Alarm input and output
  • Alarm triggers include analytics, network disconnect, and alarm input
  • Alarm events include file upload via FTP and email, notification via email, microSD card or NAS recording at event triggers, alarm output, and handover
  • Compatible with Windows 7, 8.1 & 10, Mac OS X 10.10 to 10.14, Chrome, Microsoft Edge, Internet Explorer 11, Firefox (Windows 64-bit only), and Safari (Mac OS X only)
  • FCC, cUL, CE, and EAC certified
  • 5 Megapixel resolution
  • Built-in 2.8mm fixed lens
  • 30fps@all resolutions (H.265/H.264)
  • H.265, H.264, MJPEG codec supported, Multiple streaming
  • Day & Night (ICR), WDR (120dB)
  • Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line
  • micro SD (128GB) memory slot, PoE
  • IR viewable length 20m, IP66, IK10
  • Hallway view support
  • Analog video out for easy installation
  • LDC support (Lens Distortion Correction)

Wisenet Q network outdoor vandal bullet camera, 5MP @ 30fps, 2.8mm fixed focal lens (104°), triple codec H.265/H.264/MJPEG with Wisestream II, 120dB WDR, IR LEDs range 65', defocus detection, hallway View, SD card, video analytics, CVBS, open platform, IP66, IK10, PoE

View AllClose

Detailed Specifications

Hanwha Techwin QNO-8010R Specs

Camera

Sensor

5 MP 1/2.8" CMOS

Focal Length

2.8mm

Maximum Aperture

f/2

Lens Field of View

Horizontal: 104.7°
Vertical: 76.5°
Diagonal: 136°

IR Cut Filter

Mechanical

Day/Night

Yes

Minimum Illumination

Color: 0.15 Lux
B&W: 0 Lux

Shutter Speed

1/12,000 to 1/5 Seconds

Video

Streaming Resolution

2592 x 1944 at 30 fps

Supported Video Compression

H.264, H.265, MJPEG

Multi-View Streaming

Yes, 3 Streams

Built-In Mic

No

Networking

Security

Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, User Access Log

Supported Protocols

ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, LLDP, NTP, PIM, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP

System Integration

Application Programming Interface (API)

ONVIF Profiles G, S & T, SUNAPI (HTTP API), Wisenet Open Platform

Analytics

Defocus Detection, Directional/Virtual Line Detection, Motion Detection (4 Polygonal Zones), Enter/Exit, Tampering

Event Trigger

Yes

Event Action

Recording, Notification, Alarm

Data Streaming

Yes

System Requirements

Windows OS Support

Windows 7, 8.1, 10

Mac OS Support

macOS 10.14, macOS 10.13, macOS 10.12, OS X 10.11, OS X 10.10

Environmental

Operating Temperature

-22 to 131°F / -30 to 55°C

Storage Temperature

-22 to 140°F / -30 to 60°C

Operating Humidity

0 to 90%

IP Rating

IP66

IK Rating

IK10

General

Memory

512 MB RAM / 256 MB Flash

Media/Memory Card Slot

Single Slot: microSD/microSDHC/microSDXC [128 GB Maximum]

Pan/Tilt

None

Alarm I/O

1 / 1

I/O Connections

1 x RJ45
1 x BNC

IR Range

65.62' / 20 m

Supported Languages

Czech
Dutch
English
French
German
Greek
Hungarian
Italian
Japanese
Korean
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Turkish

Internal Storage

None

External Storage Options

NAS

Power Source

PoE 802.3af (15 W)

Power Consumption

PoE: 6.1 W

Material of Construction

Aluminum

Dimensions

ø: 2.8 x L: 9.7" / ø: 70.0 x L: 246.0 mm

Weight

1.5 lb / 680 g

Packaging Info

Package Weight

2.28 lb

Box Dimensions (LxWxH)

11.2 x 4.7 x 4.3"
