Hanwha Vision America

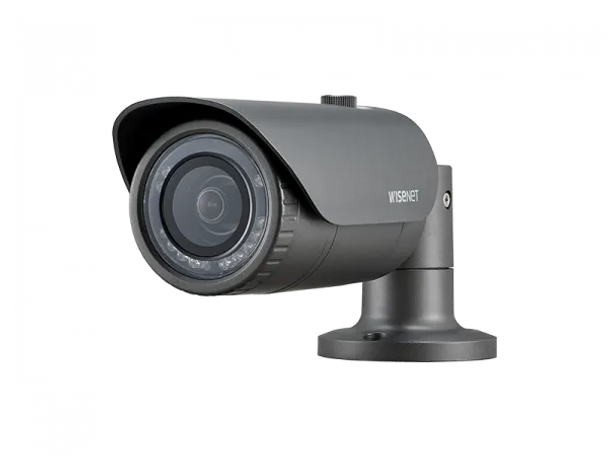

Hanwha Techwin 4MP Wisenet HD+ Bullet Camera, HCO-7010RA

(No reviews yet) Write a Review
SKU:
HCO-7010RA
UPC:
8801089184665
MPN:
HCO-7010RA
Condition:
New
  • Hanwha Techwin 4MP Wisenet HD+ Bullet Camera, HCO-7010RA
  • Hanwha Techwin 4MP Wisenet HD+ Bullet Camera, HCO-7010RA
  • Hanwha Techwin 4MP Wisenet HD+ Bullet Camera, HCO-7010RA
MSRP: $200.00
Price: $130.00
— You save $70.00

Description

Hanwha Techwin HCO-7010RA Overview

Monitor an outdoor area with the dark gray HCO-7010RA 4MP Outdoor Analog HD Bullet Camera from Hanwha Techwin. This camera uses a 4MP progressive scan CMOS sensor to transmit 2560 x 1944 resolution video at 30 fps. IR LEDs provides up to 65' of night vision. The camera's 2.8mm fixed lens delivers a 107.48° horizontal field of view. AHD and CVBS signal outputs are supported. UTC (Up-the-Coax) connection enables OSD control of the camera.

  • QHD (2560 x 1440, 30fps) resolution
  • 0.26 Lux@F1.8 (Color),0 Lux (B/W : IR LED on)
  • Built-in 2.8mm fixed lens
  • Day & Night (ICR), DWDR, Motion detection
  • IR Viewable Length 20m
  • Transmission distance max.500m
  • Easy installation (Plug & play), IP66, IK10

This bullet camera has a video transmission range up to 1640'. It is housed in an IP66- and IK10-rated aluminum enclosure that is suitable for outdoor use in areas at risk of vandalism.

  • Plug-and-play installation
  • IR cut filter for day and night functionality
  • 1.64' minimum object distance
  • 52 dB S/N ratio
  • Digital wide dynamic range
  • Automatic gain control
  • 2D-DNR
  • Backlight and highlight compensation
  • White balance modes include ATW, outdoor, indoor, manual, and AWC
  • Privacy masking for 2 rectangular zones
  • Motion detection (4 zones)
  • Horizontal and vertical reverse modes
  • Additional CVBS 2-pin output for installation only
  • FCC, cUL, and CE certified

Wisenet HD+ 4MP IR bullet camera, AHD or CVBS formats are available, 2.8 mm fixed lens, true D/N, 12VDC, IR distance 65 feet, IP66/IK10.

Key Features
  • 2560 x 1440 Resolution at 30 fps
  • IR LEDs for Night Vision up to 65'
  • 2.8mm Fixed Lens
  • 107.48° Horizontal Field of View
  • Supports AHD & CVBS
  • UTC (Up-the-Coax) Compliant BNC
  • Video Transmission up to 1640'
  • IP66 Rated for Outdoor Use
  • IK10-Rated Vandal Resistance

View AllClose

Detailed Specifications

Hanwha Techwin HCO-7010RA Specs

Camera
Sensor 4 MP 1/3" CMOS
Focal Length 2.8mm
Lens Field of View Horizontal: 107.448°
Vertical: 59.67°
Diagonal: 122.01°
IR Cut Filter Mechanical
Day/Night Yes
Minimum Illumination Color: 0.26 Lux
B&W: 0 Lux
Shutter Speed 1/12,000 to 1/30 Seconds



Video Output
Video Output Connectors 2 x BNC (AHD / Composite)
Output Formats AHD:
2560 x 1440 at 30 fps
Composite:
640 x 480
Automatic Gain Control Yes
Built-In Mic No



PTZ Control
Up-the-Coax Communication Yes
Supported Control Protocols Pelco-C
Proprietary



System Integration
Analytics Motion Detection (4 Zones)
Event Trigger No



Environmental
Operating Temperature -22 to 131°F / -30 to 55°C
Operating Humidity 0 to 90%
IP Rating IP66
IK Rating IK10



General
Pan/Tilt None
I/O Connections 2 x BNC
IR Range 65.62' / 20 m
Supported Languages Czech
Danish
English
French
German
Italian
Polish
Portuguese
Romanian
Russian
Serbian
Spanish
Swedish
Turkish
Internal Storage None
Power Source DC
Power Consumption DC: 5 W
Material of Construction Aluminum
Dimensions ø: 2.8 x L: 9.7" / ø: 70.0 x L: 246.0 mm
Weight 1.47 lb / 670 g

Video



Imaging Device

1/3" 4MP CMOS

Effective Pixels

2688(H)x1520(V)

NETD

None

Pixel Size

None

Min. Illumination

Color: 0.26Lux(F1.8, 1/30sec) BW: 0Lux(IR LED on)

Video Out

BNC(AHD), additional CVBS for installation(2Pin connector type)

Lens



Focal Length (Zoom Ratio)

2.8mm fixed

Max. Aperture Ratio

F1.8

Angular Field of View

H: 107.48˚, V: 59.67˚, D: 122.01˚

Min. Object Distance

0.5m(1.64ft)

Focus Control

None

Lens Type

None

Mount Type

None

Optional Lens

None

Pan / Tilt / Rotate



Pan / Tilt / Rotate Range

None

Pan Range

None

Pan Speed

None

Tilt Range

None

Tilt Speed

None

Rotate Range

None

Sequence

None

Preset Accuracy

None

Azimuth

None

Auto Tracking

None

Operational



IR Viewable Length

20m(65.62ft)

Camera Title

None

Day & Night

Auto(ICR)

Backlight Compensation

UserBLC, HLC, DWDR

Wide Dynamic Range

None

Digital Noise Reduction

2DDNR

Digital Image Stabilization

None

Defog

None

Motion Detection

4 zones

Privacy Masking

2 zones

Gain Control

Low / Middle / High / Very High

White Balance

ATW / AWC / Manual / Indoor / Outdoor

LDC

None

Electronic Shutter Speed

1/30 ~ 1/12,000sec(N), 1/25~ 1/12,000sec(P)

Digital PTZ

None

Video Rotation

H-Rev/V-Rev

Analytics

Motion detection

Business Intelligence

None

Serial Interface

None

Alarm I/O

None

Alarm Triggers

None

Alarm Events

None

Audio In

None

Audio Out

None

IR Illuminator (Optional)

None

Wiper

None

Coaxial Protocol

ACP(AHD Coax Protocol), CVBS: Pelco-C(Coaxitron)

Video Transmission Distance

500m(5C2V Coaxial Cable)

Radiometry



Temperature detect range

None

Temperature accuracy

None

Temperature detection

None

Additional

None

Network



Ethernet

None

Video Compression

None

Resolution

2560x1440

Max. Framerate

30fps@4M(N), 25fps@4M(P)

Smart Codec

None

Video Quality Adjustment

None

Bitrate Control

None

Streaming

None

Audio Compression

None

Protocol

None

Security

None

Edge Storage

None

Application Programming Interface

None

Webpage Language

None

Web Viewer

None

Memory

None

Environmental



Operating Temperature / Humidity

-30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH * Start up should be done at above -10°C

Storage Temperature / Humidity

None

Certification

IP66, IK10

Electrical



Input Voltage

12VDC

Power Consumption

Max 5W

Mechanical



Color / Material

Dark Gray / Aluminum

RAL Code

None

Product dimensions / weight

Ø70.0 x 246.0mm(Ø2.76”x9.69”), 670g(1.48 lb)

Conduit hole

None

Hanging mount(Dome)

None

Skin cover(Dome)

None

Weather cap(Dome)

None

Power module

None

Backbox

None

DORI



Detect

None

Observe

None

Recognize

None

Identify

None
