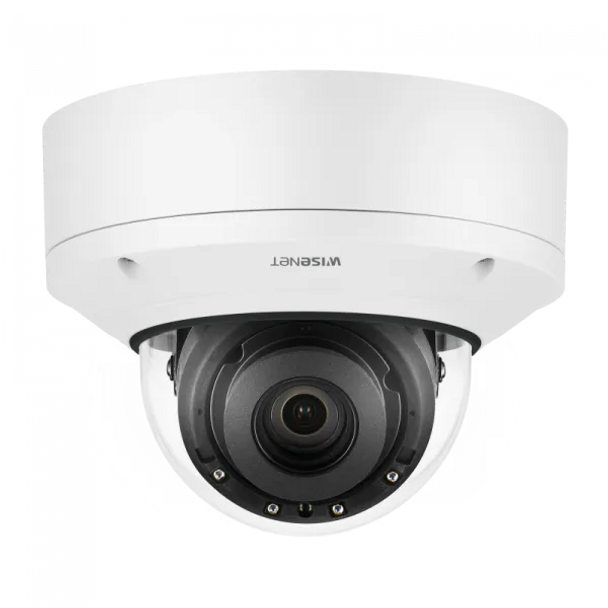

Hanwha Techwin 4K IR Indoor Dome, XND-9082RV

Video

Imaging Device

1/2.8" progressive CMOS

Resolution

3840x2160, 3328x1872,3072x1728, 2592x1944, 2688x1520, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240

Max. Framerate

H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps/12fps(60Hz/50Hz)

NETD

None

Pixel Size

None

Min. Illumination

Color: 0.05Lux(F1.2, 1/30sec, 30IRE) B/W: 0.005Lux(F1.2, 1/30sec, 30IRE), 0Lux(IR LED on)

Video Out

CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB: Micro USB Type B, 1280x720 for installation

Video Transmission Distance

None

Lens

Focal Length (Zoom Ratio)

2.8~8.4mm(3x) motorized varifocal

Max. Aperture Ratio

F1.2(Wide)~F2.8(Tele)

Angular Field of View

H: 114°(Wide)~40.2°(Tele) V: 62.0°(Wide)~22.5°(Tele) D: 133.0°(Wide)~46.3°(Tele)

Min. Object Distance

0.7m (2.23ft)

Focus Control

Simple focus

Lens Type

DC Auto Iris, P iris

Mount Type

None

Optional Lens

None

Pan / Tilt / Rotate

Pan / Tilt / Rotate Range

0˚~360˚ / -45˚~85˚ / 0˚~355˚

Pan Range

None

Pan Speed

None

Tilt Range

None

Tilt Speed

None

Rotate Range

None

Sequence

None

Preset Accuracy

None

Operational

Camera Title

Displayed up to 85 characters

Direction Indicator

None

Day & Night

Auto(ICR)

Backlight Compensation

BLC, HLC, WDR, SSDR

Wide Dynamic Range

extremeWDR (120dB)

Digital Noise Reduction

SSNRⅤ

Digital Image Stabilization

Support(built-in gyro sensor)

Defog

Support

Motion Detection

8ea, 8point Polygonal zones

Privacy Masking

32ea, Quadrangle zones - Color : Gray, Green, Red, Blue, Black, White - Mosaic

Gain Control

Support

White Balance

ATW / Narrow ATW / AWC / Manual / Indoor / Outdoor

LDC

Support (Fill/stretch mode)

Electronic Shutter Speed

Minimum / Maximum / Anti flicker (2~1/12,000sec) prefer shutter control

Digital PTZ

Support

Video Rotation

Flip, Mirror, Hallway view(90°/270°)

Analytics

Defocus detection, Directional detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Fog detection, Virtual line, Audio detection, Sound classification, Shock detection, Face/upper body detection

Business Intelligence

People counting, Queue management, Heatmap

Serial Interface

None

Alarm I/O

2 configurable I/O ports

Alarm Triggers

Analytics, Network disconnect, Alarm input

Alarm Events

When alarm trigger occurred - File upload(image) : e-mail/FTP - Notification : e-mail - Recording : SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover(PTZ preset, Send message by HTTP/HTTPS/TCP) - Audio clip playback

Audio In

Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm

Audio Out

Line out, Max.output level: 1Vrms

IR Viewable Length

WiseIR 40m(131.23ft)

IR Illuminator (Optional)

None

Water Removal

None

Auto Tracking

None

Coaxial Protocol

None

Color Palettes

None

Radiometry

Temperature Detect Range

None

Temperature Accuracy

None

Temperature Detection

None

Additional

None

Network

Ethernet

Metal shielded RJ-45(10/100/1000BASE-T)

Video Compression

H.265/H.264: Main/High, MJPEG

Audio Compression

G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz

Smart Codec

Manual(5ea area), WiseStreamⅡ

Video Quality Adjustment

H.264/H.265: Target bitrate level control MJPEG: Target bitrate level control

Bitrate Control

H.264/H.265: CBR or VBR MJPEG: VBR

Streaming

Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles, 3 virtual channel support)

Protocol

IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)

Security

HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) Device Certificate(Hanwha Techwin Root CA, pre-installed) Secure by default certificate HTPM (Hanwha Trusted platform module) Secure OS/Boot/Storage, Verify firmware forgery

Application Programming Interface

ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform

General

Webpage Language

English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Greek, Hungarian

Web Viewer

None

Edge Storage

Micro SD/SDHC/SDXC 2slot 1TB(512GBx2)

Memory

4GB RAM, 512MB Flash

Environmental & Electrical

Operating Temperature / Humidity

-50°C ~ +60°C(-58°F ~ +140°F) / 0 ~ 95% RH(non condensing) * Start up should be done at above -30°C

Storage Temperature / Humidity

-50°C ~ +60°C(-58°F ~ +140°F) / 0 ~ 90% RH

Certification

IP66/IP67/IP6K9K, IK10+, NEMA4X

Input Voltage

PoE(IEEE802.3af), 12VDC, 24VAC(Accessory)

Power Consumption

PoE : Max 12.95W, typical 10.7W 12VDC : Max 11.5W, typical 9.0W 24VAC : Max 13.5W, typical 11.0W Power redundancy failover

Mechanical

Color / Material

White / Aluminum, Hard-coated dome bubble

RAL Code

RAL9003

Product Dimensions / Weight

Ø180x125mm(7.09x4.92"), 1900g(4.19 lb)

Compatible Conduit hole / Gangbox

3/4" (M25) single, double, 4" octagon, 4" square

Hanging Mount (Dome)

SBP-187HMW

Skin Cover (Dome)

SBC-180B

Weather Cap (Dome)

None

Power Module

SPC-100AC

Backbox

None

DORI (EN62676-4 standard)

Detect (25PPM/ 8PPF)

Wide: 49.9m(163.71ft) / Tele: 209.9m(688.65ft)

Observe (63PPM/ 19PPF)

Wide: 19.9m(65.29ft) / Tele: 83.9m(275.26ft)

Recognize (125PPM/ 38PPF)

Wide: 10.0m(32.80ft) / Tele: 42.0m(137.80ft)

Identify (250PPM/ 76PPF)

Wide: 5.0m(16.40ft) / Tele: 21.0m(68.90ft)
