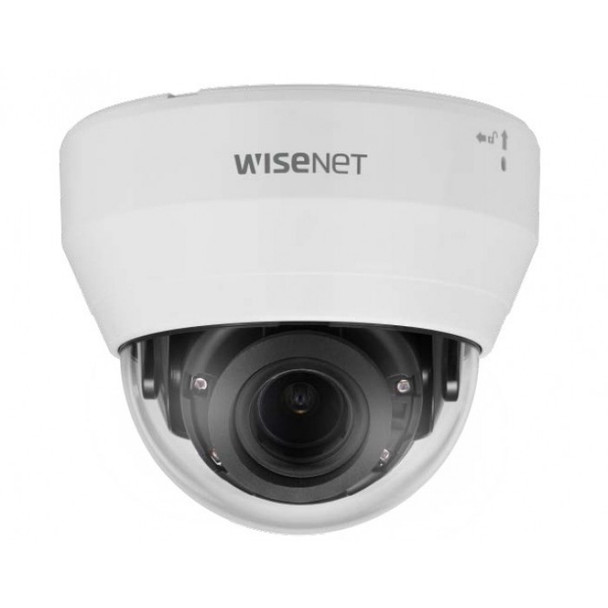

Hanwha Techwin 2MP IR Dome, LND-6032R
- SKU:
- LND-6032R
- UPC:
- 8801089170095
- MPN:
- LND-6032R
- Condition:
- New
Description
Hanwha Techwin LND-6032R Overview
Monitor your space with the white LND-6032R 2MP Network Dome Camera from Hanwha Techwin. This camera uses a 1/2.8" progressive scan CMOS image sensor to capture 1920 x 1080 resolution video at up to 30 fps. IR LEDs provide up to 65' of night vision. A 6mm fixed lens delivers a 52.8° horizontal field of view. A built-in memory card slot accepts microSD/SDHC cards up to 32GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
- 2 Megapixel (1920 x 1080) resolution
- Built-in 6mm fixed lens
- 30fps@ all resolutions (H.264)
- H.264, MJPEG codec supported, Multiple streaming
- Day & Night (ICR), WDR (120dB)
- Tampering, Motion detection
- Micro SD/SDHC memory slot (Max. 32GB), PoE
- Hallway view, WiseStream II support
- IR viewable length 20m
- White camera body
- Genetec Stratocast compatible
This dome camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices.
- IR cut filter for day and night functionality
- H.264 and MJPEG video codecs
- WiseStream II support
- Unicast and multicast streaming
- Up to 6 users in unicast mode
- Triple streaming
- CBR and VBR
- Electronic shutter speed
- Fixed focus control
- Camera pivots from 0 to 350° horizontally and from 0 to 67° vertically
- 0 to 355° rotation range
- 1.64' minimum object distance
- Lens distortion correction
- Backlight compensation
- 120 dB wide dynamic range
- Digital noise reduction (SSNR)
- Gain control
- White balance modes include ATW, AWC, manual, indoor, and outdoor
- Flip, mirror, and hallway view support (90 & 270°)
- Privacy masking for up to 6 rectangular zones
- Analytics include motion detection (4 rectangular zones) and tampering
- Alarm triggers via analytics
- Alarm events include notification via file upload via FTP/email and notification via email
- 100M Ethernet port
- Camera title displayed in up to 15 characters
- Compatible with Windows 7, 8.1 & 10, Mac OS X 10.12, 10.13 & 10.14, Chrome, Internet Explorer 11, Microsoft Edge, Firefox (Windows 64-bit only), and Safari (Mac OS X only)
DORI Distance
- Detect: 253.8'
- Observe: 101.5'
- Recognize: 50.8'
- Identify: 25.4'
L series indoor dome camera, 2MP @ 30fps,6mm fixed focal lens (51°), Double codec H.264/MJPEG, Wisestream II, 120dB WDR, IR LEDs, hallway view, SD card, PoE, White
- 1920 x 1080 Resolution at 30 fps
- IR LEDs for Night Vision up to 65'
- 6mm Fixed Lens
- 52.8° Horizontal Field of View
- Supports microSD/SDHC Cards up to 32GB
- RJ45 Ethernet with PoE Technology
- Complies with ONVIF Profiles G, S & T
Detailed Specifications
|
Video |
|
|
Imaging Device |
1/2.8" 2MP CMOS |
|
Effective Pixels |
1945(H)x1097(V) |
|
NETD |
None |
|
Pixel Size |
None |
|
Min. Illumination |
Color: 0.03Lux(F2.0, 1/30sec) BW : 0Lux (IR LED on) |
|
Video Out |
None |
|
Lens |
|
|
Focal Length (Zoom Ratio) |
6.0mm fixed focal |
|
Max. Aperture Ratio |
F2.0 |
|
Angular Field of View |
H: 52.8° / V: 30.3° / D: 60.4° |
|
Min. Object Distance |
0.5m(1.64ft) |
|
Focus Control |
Fixed |
|
Lens Type |
None |
|
Mount Type |
None |
|
Optional Lens |
None |
|
Pan / Tilt / Rotate |
|
|
Pan / Tilt / Rotate Range |
0˚~350˚ / 0˚~67˚ / 0˚~355˚ |
|
Pan Range |
None |
|
Pan Speed |
None |
|
Tilt Range |
None |
|
Tilt Speed |
None |
|
Rotate Range |
None |
|
Sequence |
None |
|
Preset Accuracy |
None |
|
Azimuth |
None |
|
Auto Tracking |
None |
|
Operational |
|
|
IR Viewable Length |
20m(65.62ft) |
|
Camera Title |
Displayed up to 15 characters |
|
Day & Night |
Auto(ICR) |
|
Backlight Compensation |
BLC, WDR, SSDR |
|
Wide Dynamic Range |
120dB |
|
Digital Noise Reduction |
SSNR |
|
Digital Image Stabilization |
None |
|
Defog |
None |
|
Motion Detection |
4ea, rectangler zones |
|
Privacy Masking |
6ea, rectangular zones |
|
Gain Control |
Low / Middle / High |
|
White Balance |
ATW / AWC / Manual / Indoor / Outdoor |
|
LDC |
Support |
|
Electronic Shutter Speed |
Minimum / Maximum / Anti flicker |
|
Digital PTZ |
None |
|
Video Rotation |
Flip, Mirror, Hallway view(90˚/270˚) |
|
Analytics |
Motion detection, Tampering |
|
Business Intelligence |
None |
|
Serial Interface |
None |
|
Alarm I/O |
None |
|
Alarm Triggers |
Analytics |
|
Alarm Events |
File upload via FTP and e-mail Notification via e-mail SD/SDHC recording at event triggers |
|
Audio In |
None |
|
Audio Out |
None |
|
IR Illuminator (Optional) |
None |
|
Wiper |
None |
|
Coaxial Protocol |
None |
|
Video Transmission Distance |
None |
|
Radiometry |
|
|
Temperature detect range |
None |
|
Temperature accuracy |
None |
|
Temperature detection |
None |
|
Additional |
None |
|
Network |
|
|
Ethernet |
RJ-45(10/100BASE-T) |
|
Video Compression |
H.264: Main/Baseline/High, MJPEG |
|
Resolution |
1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360 |
|
Max. Framerate |
H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG : Max. 2fps at 1920x1080, Max., 3fps at 1280x960, 1280x720, Max. 10fps at other resolution |
|
Smart Codec |
WiseStreamⅡ |
|
Video Quality Adjustment |
H.264: Target bitrate level control MJPEG: Quality level control |
|
Bitrate Control |
H.264: CBR or VBR MJPEG: VBR |
|
Streaming |
Unicast(6 users) / Multicast Multiple streaming (Up to 3 profiles) |
|
Audio Compression |
None |
|
Protocol |
IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP |
|
Security |
HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
|
Edge Storage |
Micro SD/SDHC 1slot 32GB |
|
Application Programming Interface |
ONVIF Profile S/G/T SUNAPI(HTTP API) |
|
Webpage Language |
English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch |
|
Web Viewer |
Supported OS: Windows 7, 8.1, 10, Mac OS X 10.12, 10.13, 10.14 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only) |
|
Memory |
512MB RAM, 256MB Flash |
|
Environmental |
|
|
Operating Temperature / Humidity |
-10°C ~ +55°C(+14°F ~ +131°F) / Less than 90% RH |
|
Storage Temperature / Humidity |
-30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH |
|
Certification |
None |
|
Electrical |
|
|
Input Voltage |
PoE(IEEE802.3af, Class2) |
|
Power Consumption |
Max 6.4W, Typical 5.0W |
|
Mechanical |
|
|
Color / Material |
White / Plastic |
|
RAL Code |
RAL9003 |
|
Product dimensions / weight |
Ø110x86mm(Ø4.33x3.39"), 270g |
|
Conduit hole |
None |
|
Hanging mount(Dome) |
None |
|
Skin cover(Dome) |
None |
|
Weather cap(Dome) |
None |
|
Power module |
None |
|
Backbox |
None |
|
DORI |
|
|
Detect (25PPM/ 8PPF) |
77.4m(253.77ft) |
|
Observe (63PPM/ 19PPF) |
30.9m(101.51ft) |
|
Recognize (125PPM/ 38PPF) |
15.5m(50.75ft) |
|
Identify (250PPM/ 76PPF) |
7.7m(25.38ft) |
