Hanwha Vision America

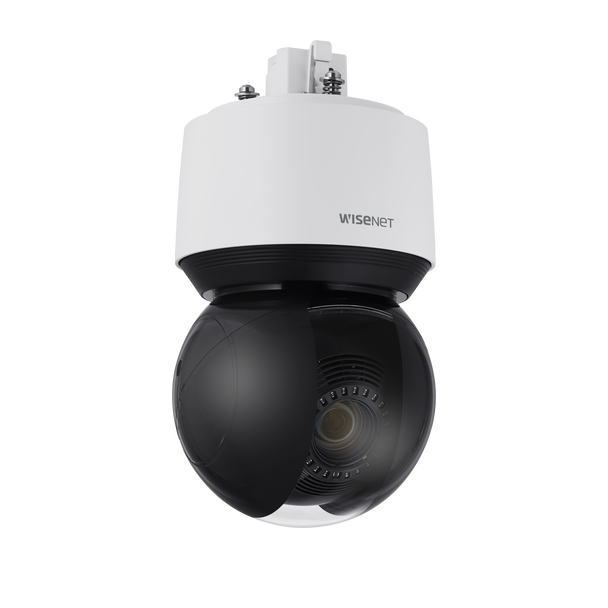

Hanwha Techwin 2MP IR 32x PTZ, QNP-6320R
- SKU:
- QNP-6320R
- UPC:
- 8801089192653
- MPN:
- QNP-6320R
- Condition:
- New
Description
Hanwha Techwin 2MP IR 32x PTZ, QNP-6320R
- Max. 2MP resolution
- 4.44~142.6mm (32x) lens
- Max. IR viewable length 100m (328.08ft)
- Day & Night (ICR), WDR, DIS (Built-in gyro sensor)
- Intelligent Analytics
- H.264, H.265, MJPEG codec, WiseStreamII
- Micro SD/SDHC/SDXC 1slot 256GB
- IP66, IK10, NEMA4X"
Wisenet Q network IR PTZ camera, IR range of up to 328ft, 2MP, Full HD(1080p) 60fps, triple codec H.265/H.264/MJPEG with WiseStream II technology, 4.44~142.6mm (32x) lens, 120dB WDR, Day & Night (ICR), DIS (Built-in gyro sensor), Intelligent Analytics, Micro SD/SDHC/SDXC 1slot 256GB, Focus Save, IP66, IK10, NEMA4X, white color
Detailed Specifications
Video |
|
Imaging Device |
1/2.8" CMOS |
Resolution |
1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
Max. Framerate |
H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
NETD |
None |
Pixel Size |
None |
Min. Illumination |
Color: 0.05Lux(F1.6, 1/30sec) BW: 0.005Lux(F1.6, 1/30sec) |
Video Out |
None |
Video Transmission Distance |
None |
Lens |
|
Focal Length (Zoom Ratio) |
4.44~142.6mm(32x) zoom (digital 32x, total 1024x zoom) |
Max. Aperture Ratio |
F1.6(Wide)~F4.4(Tele) |
Angular Field of View |
H: 64.66˚(Wide)~2.29˚(Tele) / V: 38.08˚(Wide)~1.30˚(Tele) |
Min. Object Distance |
Wide: 1.5m(4.92ft), Tele: 2m(6.56ft) |
Focus Control |
Oneshot AF |
Lens Type |
DC auto iris |
Mount Type |
None |
Optional Lens |
None |
Pan / Tilt / Rotate |
|
Pan / Tilt / Rotate Range |
None |
Pan Range |
360˚ Endless |
Pan Speed |
Preset: 700˚/sec, Manual: 0.024˚/sec~200˚/sec |
Tilt Range |
105˚(-15˚~90˚) |
Tilt Speed |
Preset: 300˚/sec, Manual: 0.024˚/sec~200˚/sec |
Rotate Range |
None |
Sequence |
Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule |
Preset Accuracy |
±0.2˚ |
Operational |
|
Camera Title |
Displayed up to 85 characters |
Direction Indicator |
Support |
Day & Night |
Auto(ICR) |
Backlight Compensation |
BLC, HLC, WDR, SSDR |
Wide Dynamic Range |
120dB |
Digital Noise Reduction |
SSNRⅤ |
Digital Image Stabilization |
Support(built-in gyro sensor) |
Defog |
Support |
Motion Detection |
8ea, 8point polygonal zones |
Privacy Masking |
32ea, Quadrangle Support - Color: Grey/Green/Red/Blue/Black/White - Solid/Mosaic |
Gain Control |
Low / Middle / High |
White Balance |
ATW / AWC / Manual / Indoor / Outdoor / Mercury / Sodium |
LDC |
None |
Electronic Shutter Speed |
Minimum / Maximum / Anti flicker (2~1/12,000sec) |
Digital PTZ |
None |
Video Rotation |
Flip, Mirror |
Analytics |
Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line, Audio detection |
Business Intelligence |
None |
Serial Interface |
None |
Alarm I/O |
Input 4ea / Output 2ea |
Alarm Triggers |
Analytics, Network disconnect, Alarm input |
Alarm Events |
File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers PTZ Preset Handover |
Audio In |
Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
Audio Out |
Line out, Max.output level: 1Vrms |
IR Viewable Length |
None |
IR Illuminator (Optional) |
None |
Water Removal |
None |
Auto Tracking |
None |
Coaxial Protocol |
None |
Color Palettes |
None |
Radiometry |
|
Temperature detect range |
None |
Temperature accuracy |
None |
Temperature detection |
None |
Additional |
None |
Network |
|
Ethernet |
RJ-45(10/100BASE-T) |
Video Compression |
H.265/H.264,MJPEG |
Audio Compression |
G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
Smart Codec |
Manual(5ea area), WiseStreamⅡ |
Video Quality Adjustment |
H.264/H.265: Target bitrate level control MJPEG: Target bitrate level control |
Bitrate Control |
H.264/H.265: CBR or VBR MJPEG: VBR |
Streaming |
Unicast(20 users) / Multicast (128 user) Multiple streaming(Up to 10 profiles) |
Protocol |
IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP |
Security |
HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
Application Programming Interface |
ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
General |
|
Webpage Language |
English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
Web Viewer |
None |
Edge Storage |
Micro SD/SDHC/SDXC 1slot 256GB |
Memory |
1024MB RAM, 256MB Flash |
Environmental & Electrical |
|
Operating Temperature / Humidity |
-10°C~+55°C (14°F ~ +131°F) / Less than 95% RH |
Storage Temperature / Humidity |
-30°C~+60°C (-22°F~+140°F) / Less than 95% RH |
Certification |
None |
Input Voltage |
PoE+(IEEE802.3at, Class4) |
Power Consumption |
Max. 14.5W, Typ. 12W |
Mechanical |
|
Color / Material |
White / Plastic |
RAL Code |
RAL9003 |
Product dimensions / weight |
Ø152x218mm(5.98x8.58"), 1.7Kg(3.75 lb) |
DORI (EN62676-4 standard) |
|
Detect (25PPM/ 8PPF) |
Wide: 64.2m(199.1ft) / Tele: 1921.3m(6303.4ft) |
Observe (63PPM/ 19PPF) |
Wide: 24.3m(79.6ft) / Tele: 768.5m(2521.4ft) |
Recognize (125PPM/ 38PPF) |
Wide: 12.1m(39.8ft) / Tele: 384.3m(1260.7ft) |
Identify (250PPM/ 76PPF) |
Wide: 6.1m(19.9ft) / Tele: 192.1m(630.3ft) |
