Hanwha Vision America

Hanwha Techwin 2MP Analog HD Box Camera, HCB-6001

(No reviews yet) Write a Review
SKU:
HCB-6001
UPC:
8801089100641
MPN:
HCB-6001
Condition:
New
  • Hanwha Techwin 2MP Analog HD Box Camera, HCB-6001
  • Hanwha Techwin 2MP Analog HD Box Camera, HCB-6001
  • Hanwha Techwin 2MP Analog HD Box Camera, HCB-6001
  • Hanwha Techwin 2MP Analog HD Box Camera, HCB-6001
MSRP: $215.00
Price: $139.75
— You save $75.25

Description

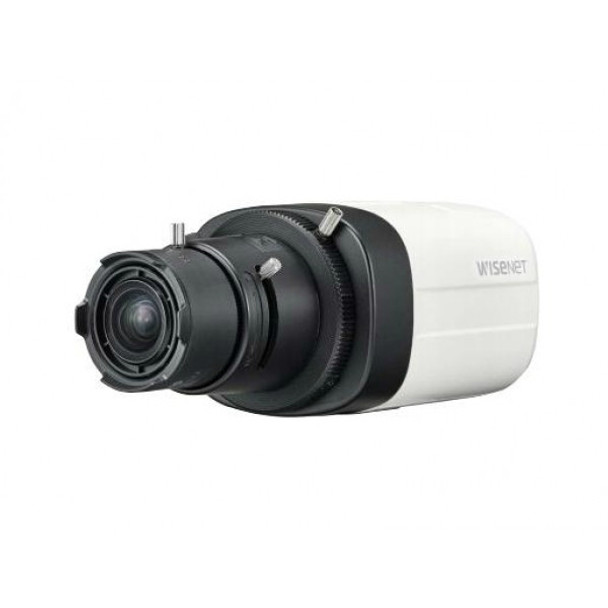

Hanwha Techwin HCB-6001 Overview

The ivory HCB-6001 from Hanwha Techwin uses a 1/2.8" progressive scan CMOS sensor to transmit 1920 x 1080 resolution video at 30 fps. This Analog Box Camera is equipped with a C/CS lens mount. An IR cut filter enables day and night functionality. The BNC video output provides selectable AHD, HD-TVI, HD-CVI, and CVBS video signals. This box camera has a video transmission range up to 1640'.

Features

  • Full HD(1920 x 1080, 30fps) resolution
  • 0.09Lux@F1.2(Color), 0.009Lux@F1.2(B/W)
  • Day & Night(ICR), WDR(120dB)
  • SSNR?, Motion detection
  • Transmission distance max.500m
  • Easy installation (Plug & play), Dual power, RS-485
  • Plug-and-play installation
  • C/CS lens mount
  • IR cut filter enables day and night functionality
  • Digital noise reduction (SSNRIV)
  • White balance modes include ATW, outdoor, indoor, manual, and AWC
  • Backlight compensation
  • 120 dB wide dynamic range
  • Gain control
  • 52 dB S/N ratio with AGC off and weight on
  • Defog
  • Motion detection for up to four zones
  • Privacy masking for up to four zones (rectangular)
  • Video transmission distance up to 1640'
  • Reverse (horizontal, vertical, and horizontal/vertical)
  • Camera title displays up to 15 characters
  • Alarm output
  • Supported protocols include Pelco C, ACP, Samsung-T, Samsung-E, Pelco D, Pelco P, Panasonic, Bosch, Honeywell, Vicon, GE, and AD
  • Coax and RS-485 interface to control supported protocols
  • Dual 24 VAC and 12 VDC power
  • FCC, cUL, and CE certified
  • 1920 x 1080 Resolution at 30 fps
  • C/CS Lens Mount
  • IR Cut Filter
  • BNC Type Connection
  • Supports AHD, HD-TVI, HD-CVI & CVBS
  • Video Transmission up to 1640'

WiseNet HD+ 2MP, Full HD(1080p) 30fps box camera, AHD/TVI/CVI/CVBS, 120 dB True WDR, RS485 /Coaxial Control, Simple Focus, True D/N, 24VAC/12VDC (Require 2MP or higher CS Mount Lens)

View AllClose

Detailed Specifications

Hanwha Techwin HCB-6001 Specs

Camera

Sensor

2 MP 1/2.8" CMOS

IR Cut Filter

Mechanical

Day/Night

Yes

Minimum Illumination

Color: 0.09 Lux
B&W: 0.009 Lux

Shutter Speed

1/12,000 to 1 Seconds

Video Output

Video Output Connectors

1 x BNC (AHD / HD-CVI / HD-TVI / Composite)

Output Formats

AHD, HD-CVI, HD-TVI:
1920 x 1080p at 30 fps
Composite:
640 x 480 at 30 fps

Automatic Gain Control

Yes

Built-In Mic

No

PTZ Control

Supported Control Protocols

Pelco-C
Pelco-D
Pelco-P
RS-485
Samsung-T
Samsung-E
Panasonic
Bosch
Honeywell
Vicon
GE

System Integration

Analytics

Motion Detection

Event Trigger

Yes

Event Action

Recording, Notification, Alarm

Environmental

Operating Temperature

14 to 131°F / -10 to 55°C

Operating Humidity

0 to 90%

General

Pan/Tilt

None

Alarm I/O

0 / 1

I/O Connections

1 x BNC
1 x 9-Pin Serial (RS-485)

IR Illuminators

None

Supported Languages

Czech
Danish
English
French
German
Italian
Japanese
Korean
Polish
Portuguese
Romanian
Russian
Serbian
Spanish
Swedish
Turkish

Internal Storage

None

Power Source

AC, DC

Power Consumption

6 W

Material of Construction

Plastic

Dimensions

H: 2.6 x W: 2.9 x L: 4.9" / H: 67.2 x W: 73.1 x L: 123.9 mm

Weight

0.63 lb / 287 g
View AllClose

Additional Information

Data Sheet:
HCB-6001
