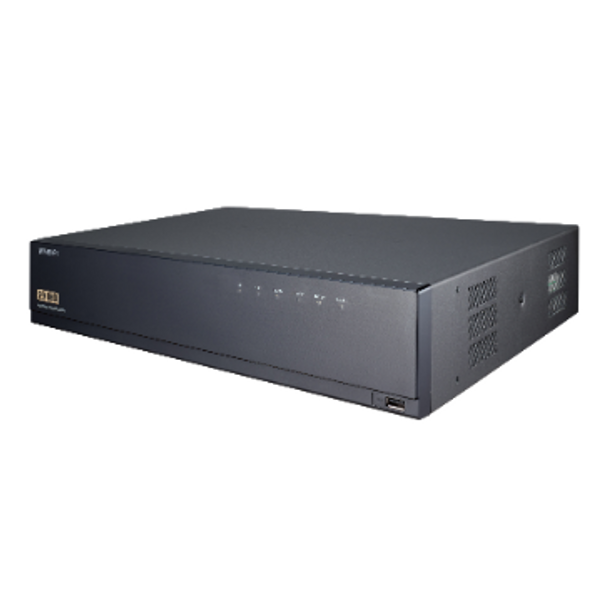

Hanwha Techwin 16 Channel 4K NVR, XRN-1610SA-28TB

Video Input Resolution

Up to 16 Channels at CIF to 12 MP

Protocols

Samsung, ONVIF Profile S

Local Display

Dual Monitor:
1 x HDMI
1 x VGA

Multi-Screen Display

Local Monitor: 1, 2V, 3V, 4, 6, 8, 9, 13, 16, Auto Sequence
Web: 1, 4, 9, 16, Auto Sequence

Live Display

Local Monitor: 12 MP at 30 fps, 8 MP at 120 fps, 5 MP at 180 fps, 3 MP at 240 fps, 2 MP at 480 fps, 720p at 480 fps, D1 at 480 fps
Web: 5 MP at 30 fps, 3 MP at 60 fps, 2 MP at 120 fps, 720p at 240 fps, D1 at 480 fps

Operating System

Embedded Linux

Compression

H.265, H.264, MJPEG, WiseStream (H.265, H.264)

Output Bandwidth

Recording: 180 Mb/s

Resolution

CIF to 12 MP

Modes

Manual, Schedule (Continuous, Event), Event (Pre, Post)

Event Trigger

Alarm Input (8), Video Loss, Camera Event (Sensor, Motion Detection, Video Analytics), VA Event (Tampering, Enter/Exit, Passing, Virtual Line, Appear/Disappear, Face Detection, Audio Detection), Defocus Camera Event

Event Action

Email, PTZ Preset, Alarm Out, Buzzer, Monitor Out

Bandwidth

Playback: 32 Mb/s (16 Channels Simultaneously)

Users

Maximum 4 Users (1 x Local, 3 x Remote)

Mode

Date/Time (Calendar), Event Log List, Text Search (POS, ANPR)

Playback

Simultaneous: Maximum 16 Channels (Local Monitor, Network)

Resolution

CIF to 12 MP

Fisheye Dewarp Mode

Processed on Web or CMS

Control

Fast Forward/Backward, Slow Forward/Backward, Move One Step Up/Down

Capacity

4 SATA Ports, Total Capacity up to 32 TB(HDDs Available Separately)

Storage Interface

4 x SATA, 1 x eSATA, iSCSI

Backup

BU/EXE (GUI), JPG/AVI (Network)
Maximum 16 Channels Play, Date-Time/Title Display

Inputs/Outputs

8 x Inputs, 4 x Outputs (NO/NC Selectable)

Inputs

16 Channels (Network)

Compression

G.711, G.726, AAC (16/48 kHz)

Communication

Two-Way (Pass-Through Between Camera and SSM)

Protocol

TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, UPnP, HTTPS, SNMP, ONVIF (Profile S), SUNAPI (Server, Client)

DDNS

iPOLiS DDNS

Bandwidth

Transmission: Maximum 256 Mb/s with iSCSI Off, 128 Mb/s with iSCSI On

Max. Remote Users

Search: 3
Live Unicast: 10
Live Multicast: 20

IP

IPv4, IPv6

Security

IP Address Filtering, User Access Log, 802.1x Authentication, Encryption (ID/PW, Recording, Transmission, Backup)

Language

English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Romanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai (GUI)

OS Support

Windows XP (Service Pack 2 or Above), Vista, 7, 8, 10
Mac OS X (10.7 or Above)

Web Browser Support

Google Chrome 47, Microsoft Edge 20
WMF: 1 Channel Live (800 x 600)
Microsoft Explorer 11, Mozilla Firefox 43, Apple Safari 9 (Mac OS X Only)

Viewer

Software: SSM, Webviewer, SmartViewer, iPOLiS Mobile Viewer

CMS

SDK, CGI (SUNAPI)

Camera

Register: Plug-and-Play, Manual Mode
Setup: IP Address, Add Profile, Edit, Bit Rate, Compression, GOP, Quality
Camera Event Setup (MD, VA, Tampering, Enter, Exit, Passing (Virtual Line), Appear, Disappear, Face Detection, Audio Detection)
Video Setup (Simple Focus, Brightness, Contrast, Flip, Mirror, Iris, WDR, D/N, SSNR, Shutter, SSDR, DIS)
Fisheye Dewarping, Hallway View Setup, Camera Webpage

Camera Control

PoE: Monitor PoE/PoE+ Power Consumption, On/Off Control for Each PoE/PoE+ Camera, Remote Reset for Each PoE/PoE+ Camera
Time Sync: NVR Time Protocol for PoE/PoE+ Camera (Time Sync Based on NVR Time)

Configuration

Setup Wizard (Language Date/Time, Network, Auto Camera Configuration), P2P (QR code)
Selectable Between Plug-and-Play and Manual Mode

Backup

Auto Recovery Backup (ARB)

PTZ Control

Via GUI, Webviewer, SPC-2000 (USB), 255 Presets

Mobile OS Support

iOS and Android

Protocol

RTP, RTSP, HTTP, CGI (SUNAPI)

Control

Live (16-Channel): Multi-Profile Support, Playback (1-Channel, 2 MP Maximum)

Number of Remote Users Supported

Mobile: 3 x Search, 10 x Live Unicast, 20 x Live Multicast

System Control

Mouse, IR Remocon, Web, SPC-2000 (USB)

LED Indicators

Front: Power Status, HDD Action, Alarm Status, Record Status, Network Action, Backup

USB

1 x Front, 1 x Rear

HDMI

1 x HDMI, Supports Live, Playback, Setup
Supports up to UHD 4K (3840 x 2160, Single Monitor Mode)

VGA

1 x VGA, Supports Live Screen up to 16 Divisions

Audio

1 x RCA, Line Out

Serial

1 x RS-232C

Ethernet

2 x Ethernet (LAN/WAN, 1 Gb/s)
LAN: Downlink to Camera, PoE (PoE+) Hub
WAN: Uplink to CMS

Alarm

8 x Inputs (Terminal Block)
4 x Outputs (Terminal Block)

Reset

Factory Reset, Alarm Reset

System Log

Maximum 20,000 (System Log, Event Log)

Input Voltage

100 to 240 VAC

Maximum Power Consumption

271.9 W with 4 HDDs, PoE/PoE+ On
51.9 W with 4 HDDs, PoE/PoE+ Off

Total PoE Budget

220 W Maximum

Operating Temperature

32 to 104°F / 0 to 40°C

Operating Humidity

20 to 85% RH

Material

Metal

Rack Height

2 RU

Dimensions

17.3 x 3.5 x 15.2" / 440 x 88 x 385 mm

Weight

11.2 lb / 5.1 kg

Package Weight

15.135 lb

Box Dimensions (LxWxH)

21.2 x 19.7 x 7.4"
