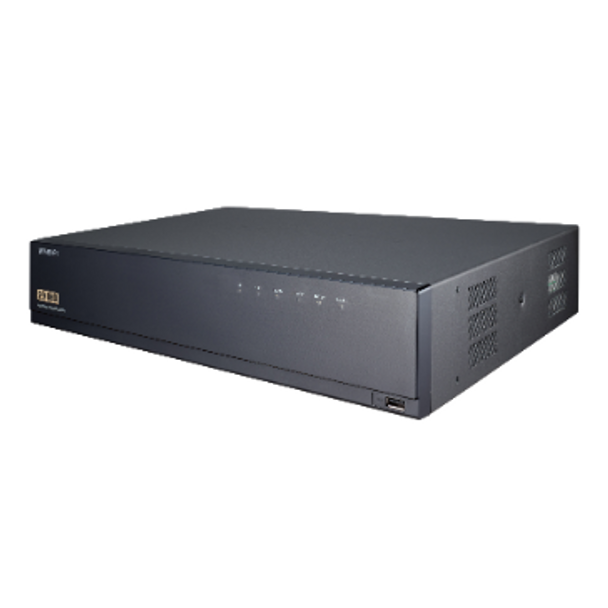

Name: Hanwha Techwin 16 Channel 4K NVR, XRN-1610SA-24TB
Brand: Hanwha Vision America
SKU: XRN-1610SA-24TB
Price: 3731 USD
Availability: OutOfStock

Description
Detailed Specifications

Description

Hanwha Techwin XRN-1610SA Overview

Connect and power up to 16 cameras with the WiseNet X Series XRN-1610SA 16-Channel 12MP PoE+ NVR from Hanwha Techwin. This 24TB 4K network video recorder is compatible with cameras up to 12MP and compresses video using WiseStream technology for efficient and optimized network bandwidth use. HDMI and VGA video outputs allow for simultaneous live viewing on local monitors. This NVR comes with 4TB of HDD storage preinstalled. All 16 Ethernet ports have built-in PoE/PoE+, which eliminates the need for optional PoE injectors. Connected cameras and network devices can transmit data and receive power from a single Ethernet cable.

16-channel NVR with built-in PoE and 24TB HDD
Up to 12MP recording on each channel
HDMI and VGA video output for up to UHD 4K (3840 x 2160) display resolution
ONVIF Profile S compliant
Four SATA ports support up to 8TB each
Supports P2P service (QR code connect)
Up to 16CH @12MP each
180Mbps recording throughput
Supports H.265/H.264/MJPEG
Maximum 4 HDDs
HDMI/VGA local dual monitor
HDMI up to UHD (4K) resolution
16 PoE/PoE+ ports with 220W Budget
ONVIF camera compliant
QR code/P2P Service for easy access with Wisenet Mobile App

4K NVR, 24TB RAW, supports: 16 channels with a 16 PoE/PoE+ ports, H.265/H.264/MJPEG, ARB (Automatic Recovery Backup), 4 fixed internal SATA HDDs (32TB max), e-SATA/iSCSI storage, WiseStream technology, dual monitor out, max. resolution of 12MP recording/display and fisheye dewarping on web and CMS, QR Code

Key Features

Record from and Manage up to 16 Cameras
Up to 12MP Recording Resolution
24TB Internal Storage Expandable to 32TB
H.265, H.264, and MJPEG Compression
Audio Input/Output for Two-Way Audio
Up to 4 Simultaneous Users
16 RJ45 Ethernet Ports with Built-in PoE
HDMI and VGA Video Outputs
WiseStream Compression Technology
ONVIF Compliant, Profile S

View AllClose

Detailed Specifications

Hanwha Techwin XRN-1610SA-24TB Specs

Display

Video Input Resolution	Up to 16 Channels at CIF to 12 MP
Protocols	Samsung, ONVIF Profile S
Local Display	Dual Monitor: 1 x HDMI 1 x VGA
Multi-Screen Display	Local Monitor: 1, 2V, 3V, 4, 6, 8, 9, 13, 16, Auto Sequence Web: 1, 4, 9, 16, Auto Sequence
Live Display	Local Monitor: 12 MP at 30 fps, 8 MP at 120 fps, 5 MP at 180 fps, 3 MP at 240 fps, 2 MP at 480 fps, 720p at 480 fps, D1 at 480 fps Web: 5 MP at 30 fps, 3 MP at 60 fps, 2 MP at 120 fps, 720p at 240 fps, D1 at 480 fps

Recording

Operating System	Embedded Linux
Compression	H.265, H.264, MJPEG, WiseStream (H.265, H.264)
Output Bandwidth	Recording: 180 Mb/s
Resolution	CIF to 12 MP
Modes	Manual, Schedule (Continuous, Event), Event (Pre, Post)
Event Trigger	Alarm Input (8), Video Loss, Camera Event (Sensor, Motion Detection, Video Analytics), VA Event (Tampering, Enter/Exit, Passing, Virtual Line, Appear/Disappear, Face Detection, Audio Detection), Defocus Camera Event
Event Action	Email, PTZ Preset, Alarm Out, Buzzer, Monitor Out

Search & Playback

Bandwidth	Playback: 32 Mb/s (16 Channels Simultaneously)
Users	Maximum 4 Users (1 x Local, 3 x Remote)
Mode	Date/Time (Calendar), Event Log List, Text Search (POS, ANPR)
Playback	Simultaneous: Maximum 16 Channels (Local Monitor, Network)
Resolution	CIF to 12 MP
Fisheye Dewarp Mode	Processed on Web or CMS
Control	Fast Forward/Backward, Slow Forward/Backward, Move One Step Up/Down

Storage

Capacity	4 SATA Ports, Total Capacity up to 32 TB(HDDs Available Separately)
Storage Interface	4 x SATA, 1 x eSATA, iSCSI
Backup	BU/EXE (GUI), JPG/AVI (Network) Maximum 16 Channels Play, Date-Time/Title Display

Sensor

Inputs/Outputs

8 x Inputs, 4 x Outputs (NO/NC Selectable)

Audio

Inputs	16 Channels (Network)
Compression	G.711, G.726, AAC (16/48 kHz)
Communication	Two-Way (Pass-Through Between Camera and SSM)

Network

Protocol	TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, UPnP, HTTPS, SNMP, ONVIF (Profile S), SUNAPI (Server, Client)
DDNS	iPOLiS DDNS
Bandwidth	Transmission: Maximum 256 Mb/s with iSCSI Off, 128 Mb/s with iSCSI On
Max. Remote Users	Search: 3 Live Unicast: 10 Live Multicast: 20
IP	IPv4, IPv6
Security	IP Address Filtering, User Access Log, 802.1x Authentication, Encryption (ID/PW, Recording, Transmission, Backup)
Language	English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Romanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai (GUI)
OS Support	Windows XP (Service Pack 2 or Above), Vista, 7, 8, 10 Mac OS X (10.7 or Above)
Web Browser Support	Google Chrome 47, Microsoft Edge 20 WMF: 1 Channel Live (800 x 600) Microsoft Explorer 11, Mozilla Firefox 43, Apple Safari 9 (Mac OS X Only)
Viewer	Software: SSM, Webviewer, SmartViewer, iPOLiS Mobile Viewer
CMS	SDK, CGI (SUNAPI)

Functions

Camera	Register: Plug-and-Play, Manual Mode Setup: IP Address, Add Profile, Edit, Bit Rate, Compression, GOP, Quality Camera Event Setup (MD, VA, Tampering, Enter, Exit, Passing (Virtual Line), Appear, Disappear, Face Detection, Audio Detection) Video Setup (Simple Focus, Brightness, Contrast, Flip, Mirror, Iris, WDR, D/N, SSNR, Shutter, SSDR, DIS) Fisheye Dewarping, Hallway View Setup, Camera Webpage
Camera Control	PoE: Monitor PoE/PoE+ Power Consumption, On/Off Control for Each PoE/PoE+ Camera, Remote Reset for Each PoE/PoE+ Camera Time Sync: NVR Time Protocol for PoE/PoE+ Camera (Time Sync Based on NVR Time)
Configuration	Setup Wizard (Language Date/Time, Network, Auto Camera Configuration), P2P (QR code) Selectable Between Plug-and-Play and Manual Mode
Backup	Auto Recovery Backup (ARB)
PTZ Control	Via GUI, Webviewer, SPC-2000 (USB), 255 Presets
Mobile OS Support	iOS and Android
Protocol	RTP, RTSP, HTTP, CGI (SUNAPI)
Control	Live (16-Channel): Multi-Profile Support, Playback (1-Channel, 2 MP Maximum)
Number of Remote Users Supported	Mobile: 3 x Search, 10 x Live Unicast, 20 x Live Multicast
System Control	Mouse, IR Remocon, Web, SPC-2000 (USB)

Connections

LED Indicators	Front: Power Status, HDD Action, Alarm Status, Record Status, Network Action, Backup
USB	1 x Front, 1 x Rear
HDMI	1 x HDMI, Supports Live, Playback, Setup Supports up to UHD 4K (3840 x 2160, Single Monitor Mode)
VGA	1 x VGA, Supports Live Screen up to 16 Divisions
Audio	1 x RCA, Line Out
Serial	1 x RS-232C
Ethernet	2 x Ethernet (LAN/WAN, 1 Gb/s) LAN: Downlink to Camera, PoE (PoE+) Hub WAN: Uplink to CMS
Alarm	8 x Inputs (Terminal Block) 4 x Outputs (Terminal Block)
Reset	Factory Reset, Alarm Reset

Log Center

System Log

Maximum 20,000 (System Log, Event Log)

General

Input Voltage	100 to 240 VAC
Maximum Power Consumption	271.9 W with 4 HDDs, PoE/PoE+ On 51.9 W with 4 HDDs, PoE/PoE+ Off
Total PoE Budget	220 W Maximum
Operating Temperature	32 to 104°F / 0 to 40°C
Operating Humidity	20 to 85% RH
Material	Metal
Rack Height	2 RU
Dimensions	17.3 x 3.5 x 15.2" / 440 x 88 x 385 mm
Weight	11.2 lb / 5.1 kg
