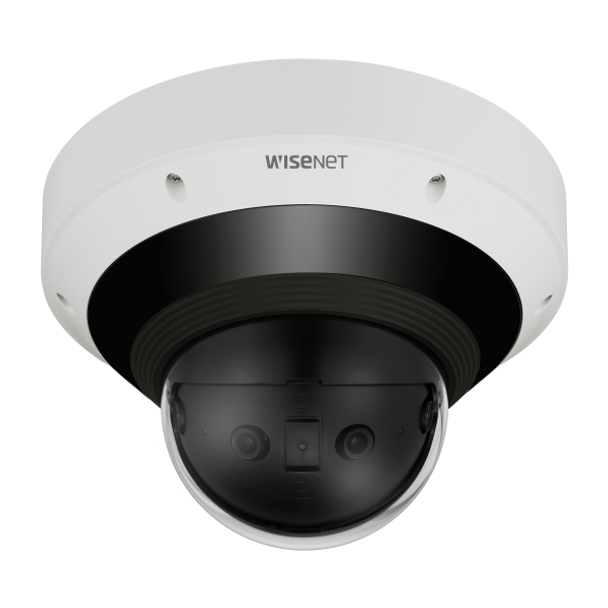

Hanwha Techwin 15MP Panoramic Camera, PNM-9031RV

(No reviews yet) Write a Review
SKU:
PNM-9031RV
UPC:
8801089199027
MPN:
PNM-9031RV
Condition:
New
  • Hanwha Techwin 15MP Panoramic Camera, PNM-9031RV
  • Hanwha Techwin 15MP Panoramic Camera, PNM-9031RV
MSRP: $2,700.00
Price: $1,755.00
— You save $945.00

Description

Hanwha Techwin PNM-9031RV Overview

The PNM-9031RV 15MP Outdoor Multi-Sensor Panoramic Network Dome Camera from Hanwha Techwin uses four 5MP 1/2.8" CMOS sensors to capture 6720 x 2240 resolution video at 20 fps. The camera features four 4.3mm fixed lenses, up to 66' of night vision, and two-way audio. It is housed in an IP66-, NEMA 4X-, and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism. Network vandal outdoor Multi-sensor dome camera, panoramic view with stitched image, (5MP X 4 sensors) 15MP @ 20fps, triple codec H.265/H.264/MJPEG with WiseStream II technology, WDR 120dB, IR viewable length 20m (65.5'), built in video analytics and sound classification, Heatmap, Bi-directional audio support, Micro SD 2 slots, IP66/IK10/NEMA4X, TPM 2.0 (FIPS 140-2 level 2), PoE+/12VDC

Network vandal outdoor Multi-sensor dome camera, panoramic view with stitched image, (5MP X 4 sensors) 15MP @ 20fps, triple codec H.265/H.264/MJPEG with WiseStream II technology, WDR 120dB, IR viewable length 20m (65.5'), built-in video analytics and sound classification, Heatmap, Bi-directional audio support, Micro SD 2 slots, IP66/IK10/NEMA4X, TPM 2.0 (FIPS 140-2 level 2) for enhanced cybersecurity, PoE+/12VDC powered.
  • 4 x 5MP Sensors
  • 6720 x 2240 Resolution at 20 fps
  • IR LEDs for Night Vision up to 66'
  • 4 x 4.3mm Fixed Lenses
  • Two-Way Audio
  • IP66 & NEMA 4X Rated for Outdoor Use
  • IK10-Rated Vandal Resistance
View AllClose

Detailed Specifications

Video



Imaging Device

1/2.8" 5MP CMOS (x4)

Resolution

6720x2240, 5952x1984, 4992x1664, 3840x1280, 3072x1024, 1920x640, 1152x384

Max. Framerate

H.265/H.264: Max. 20fps/20fps(60Hz/50Hz)@15MP MJPEG: Max. 15fps(60Hz/50Hz)

Min. Illumination

Color: 0.1Lux(F1.6, 1/30sec) BW: 0.01Lux(F1.6, 1/30sec), 0Lux(IR LED on)

Video Out

USB : Micro USB Type B, 1280x720 for installation

Lens



Focal Length (Zoom Ratio)

4.3mm Fixed

Max. Aperture Ratio

F1.6

Angular Field of View

Min (Distance 5m) H: 195.3° x V: 63.6° / Max (Distance 100m) H: 197.0° x 63.6°

Min. Object Distance

5m(16.4ft)

Focus Control

Fixed

Pan / Tilt / Rotate



Pan / Tilt / Rotate Range

0~360° / 0~60° / -

Operational



Camera Title

Displayed up to 85 characters

Day & Night

Auto(ICR)

Backlight Compensation

BLC, WDR, SSDR

Wide Dynamic Range

120dB

Digital Noise Reduction

SSNRⅤ

Defog

Not Support

Motion Detection

8ea, 8point polygonal zones

Privacy Masking

6ea, rectangular zones - Color: Grey/Green/Red/Blue/Black/White

Gain Control

Low / Middle / High

White Balance

ATW / AWC / Manual / Indoor / Outdoor

Electronic Shutter Speed

Minimum / Maximum / Anti flicker (2~1/12,000sec)

Digital PTZ

None

Video Rotation

Flip, Mirror

Analytics

Defocus detection, Motion detection, Appear/Disappear, Enter/Exit, Tampering, Virtual line, Audio detection

Business Intelligence

Heatmap

Alarm I/O

Selectable 2 port

Alarm Triggers

Analytics, Network disconnect, Alarm input

Alarm Events

File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC at event triggers Alarm output

Audio In

Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm

Audio Out

Line out, Max.output level: 1Vrms

IR Viewable Length

20m(65.5ft), Wise IR 4 individual zones with Automatic and Manual level adjustment

Network



Ethernet

Metal shielded RJ-45(10/100/1000BASE-T)

Video Compression

H.265/H.264: Main/Baseline/High, MJPEG

Audio Compression

G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz

Smart Codec

Manual(5ea area), WiseStreamⅡ

Video Quality Adjustment

H.264/H.265: Target bitrate level control MJPEG: Target bitrate level control

Bitrate Control

H.264/H.265: CBR or VBR MJPEG: VBR

Streaming

Unicast(15 users) / Multicast Multicast Multiple streaming(Up to 5 profiles)

Protocol

IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP

Security

HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) Device Certificate(Hanwha Techwin Root CA) TPM 2.0 (FIPS 140-2 level 2)

Application Programming Interface

ONVIF Profile S/G/T SUNAPI(HTTP API)

General



Webpage Language

English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek

Edge Storage

Micro SD/SDHC/SDXC 2slots 512GB (256GBx2) SD card encription

Memory

8GB RAM, 4GB Flash

Environmental & Electrical



Operating Temperature / Humidity

- Normal : -40°C~+55°(-40°F ~ +131°F) / - Intermittent : -40°C~+60°C(-40°F ~ +140°F), 8Hrs - Less than 95% RH(Non-condensing) * Startup should be above -30℃ “

Storage Temperature / Humidity

-50°C~+60°C(-58°F~+140°F) / Less than 90% RH

Certification

IP66, IK10, NEMA4X

Input Voltage

PoE+ (IEEE802.3at, Class4), 12VDC

Power Consumption

PoE+: Max 23.5W, Typical 18.0W 12VDC: Max 20.5W, Typical 16.0W

Mechanical



Color / Material

White / Aluminum

RAL Code

RAL9003

Product Dimensions / Weight

Ø253x170mm / 2.9Kg
