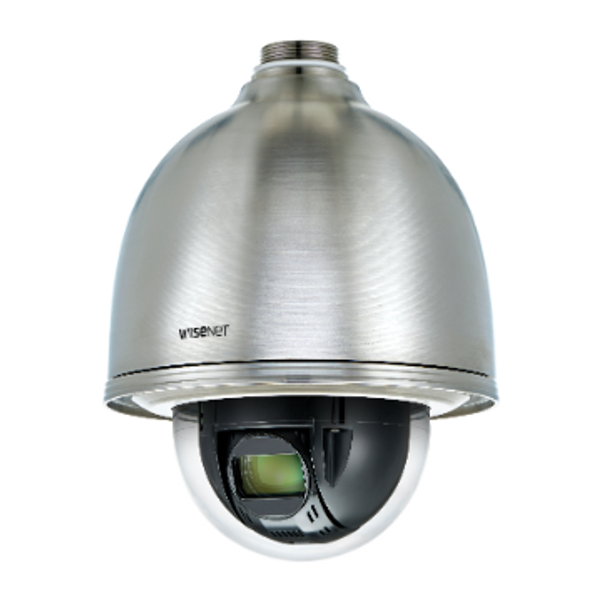

Hanwha Techwin 1080P Stainles Steel PTZ Network Camera, XNP-6320HS

(No reviews yet) Write a Review
SKU:
XNP-6320HS
UPC:
8801089108593
MPN:
XNP-6320HS
Condition:
New
MSRP: $6,300.00
Price: $4,095.00
— You save $2,205.00

Please Contact us today for Availability.

  • Ph: 844-688-7600
  • online@affinitechinc.com
  • Live Chat

    • Description

    Hanwha Techwin XNP-6320HS Overview

    Keep a close watch on your property with the stainless-steel WiseNet X Series XNP-6320HS 2MP Outdoor PTZ Network Dome Camera from Hanwha Techwin. Equipped with a 1/2.8" 2.4MP CMOS sensor and a 4.44-142.6mm varifocal lens, the XNP-6320HS captures video at resolutions up to 1920 x 1080 at 60 fps in fields of view ranging from 61.8 x 36.2° to 2.19 x 1.24°. The 1080P stainless steel camera has an automatic IR cut filter and offers image enhancement features including wide dynamic range and automatic white balance for capturing images in varying lighting conditions.

    The XNP-6320HS has PTZ functionality, with 360° endless pan, 210° tilt, and 32x optical zoom. Audio input and output connections allow for two-way audio communication. Designed for easy setup, the XNP-6320HS uses PoE+ technology, enabling you to run just one wire for both data and power. ONVIF compliance ensures compatibility with a wide range of surveillance devices.

    • Up to 2MP (1920 x 1080) resolution
    • Built-in 4.44-142.6mm 32x varifocal lens
    • 32x digital zoom
    • Up to 60 fps at all supported resolutions (H.265/H.264)
    • H.265, H.264, and MJPEG video compression for efficient storage and bandwidth use
    • WiseStream II technology dynamically controls encoding, balancing quality and compression according to movement in the image
    • Multiple streaming
    • IR cut filter for day and night vision
    • 150 dB wide dynamic range
    • Digital image stabilization with built-in gyro sensor
    • Video and audio analytics including loitering detection, directional detection, fog detection, audio detection, digital auto tracking, sound classification, face detection, tamper detection, and motion detection
    • Two microSD/SDHC/SDXC memory card slots for edge storage support up to 512GB in total (microSD/SDHC/SDXC cards available separately)
    • PoE+ technology for easy, clutter-free installation
    • Integrated heater for operation in cold temperatures down to -58°F (to use the heater the camera must be run on AC power)
    • Stainless-steel camera enclosure
    • IP67 and NEMA4X rated for outdoor use
    • IK10-rated vandal resistance
    Key Features
    • 1920 x 1080 Resolution at 60 fps
    • Automatic IR Cut Filter
    • 4.44-142.6mm Lens, f/1.6-4.4 Aperture
    • 61.8 to 2.19° Horizontal Field of View
    • 360° Pan, 210° Tilt, 32x Optical Zoom
    • Input and Output for Two-Way Audio
    • 2 microSD Card Slots Support up to 512GB
    • RJ45 Ethernet with PoE+
    • ONVIF Compliant, Profiles S and G
    • IP67 and IK10 Rated

    Wisenet X powered by Wisenet 5 network stainless steel PTZ camera, 2MP, Full HD(1080p) @ 60fps, 32X optical zoom lens (4.44mm ~142.6mm) (61.8º ~ 2.19º), Pan: 360° endless. Tilt: -15°~ 195°, triple codec H.265/H.264/MJPEG with WiseStream II technology, 150dB WDR, USB port for easy installation, advanced video analytics and sound classification, Auto Tracking, true D/N, dual SD card, HLC, defog detection, DIS(Gyro),24VAC/PoE+, IP66/IK10, -58°F ~ +131°F W/ 24VAC power supply

    View AllClose

    Detailed Specifications

    Hanwha Techwin XNP-6320HS Specs

    Camera

    Sensor

    2.4 MP 1/2.8" CMOS

    Focal Length

    4.4 to 142.6mm

    Maximum Aperture

    f/1.6 to 4.4

    Zoom

    Optical: 32x
    Digital: 32x

    Lens Field of View

    Horizontal: 61.8 to 2.19°
    Vertical: 36.2 to 1.24°

    IR Cut Filter

    Mechanical

    Day/Night

    Yes

    Minimum Illumination

    Color: 0.05 Lux
    B&W: 0.005 Lux

    Shutter Speed

    1/12,000 to 1 Seconds

    Video

    Streaming Resolution

    1920 x 1080 at 60 fps

    Supported Video Compression

    H.264, H.265, MJPEG

    Multi-View Streaming

    Yes, 10 Streams

    Audio

    1- or 2-Way Audio

    Two-Way

    Audio Formats

    AAC, ADPCM, G.711, G.726

    Built-In Mic

    No

    External Audio Input

    3.5 mm

    Built-In Speaker

    No

    External Audio Output

    3.5 mm

    Networking

    Security

    Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, User Access Log

    Supported Protocols

    ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, ONVIF Profile G, ONVIF Profile S, PPPoE, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP

    System Integration

    Application Programming Interface (API)

    SUNAPI (HTTP API)

    Analytics

    Tampering, Loitering, Directional Detection, Fog Detection, Virtual Line, Enter/Exit, (Dis)Appear, Audio Detection, Face Detection, Motion Detection, Sound Classification

    Event Trigger

    Yes

    Event Action

    Recording, Notification, Alarm

    Data Streaming

    Yes

    System Requirements

    Windows OS Support

    Windows 7, 8.1, 10

    Mac OS Support

    macOS 10.12, OS X 10.11, OS X 10.10

    Environmental

    Operating Temperature

    -58 to 131°F / -50 to 55°C

    Storage Temperature

    -22 to 140°F / -30 to 60°C

    Operating Humidity

    0 to 89%

    IP Rating

    IP67

    IK Rating

    IK10

    General

    Media/Memory Card Slot

    Single Slot: microSD/microSDHC/microSDXC [512 GB Maximum]

    Pan/Tilt

    Programmed Pan: 360° at 700°/s
    Manual Pan: 360° at 200°/s
    Programmed Tilt: 210° at 700°/s
    Manual Tilt: 210° at 200°/s

    Alarm I/O

    4 / 2

    I/O Connections

    1 x RJ45
    1 x Power
    1 x 4-Pin Terminal Block (RS-485)

    Video Management Software

    SmartViewer, SSM

    Supported Languages

    Czech
    Dutch
    English
    French
    German
    Greek
    Hungarian
    Italian
    Japanese
    Korean
    Polish
    Portuguese
    Russian
    Spanish
    Swedish
    Traditional Chinese
    Turkish

    Internal Storage

    None

    External Storage Options

    Local PC, NAS

    Power Source

    AC, PoE 802.3at (30 W)

    Power Consumption

    24 W
    AC: 65 W (With Heater)

    Material of Construction

    Stainless Steel

    Dimensions

    ø: 8.9 x H: 11.6" / ø: 227.0 x H: 295.5 mm

    Weight

    11.68 lb / 5.3 kg
