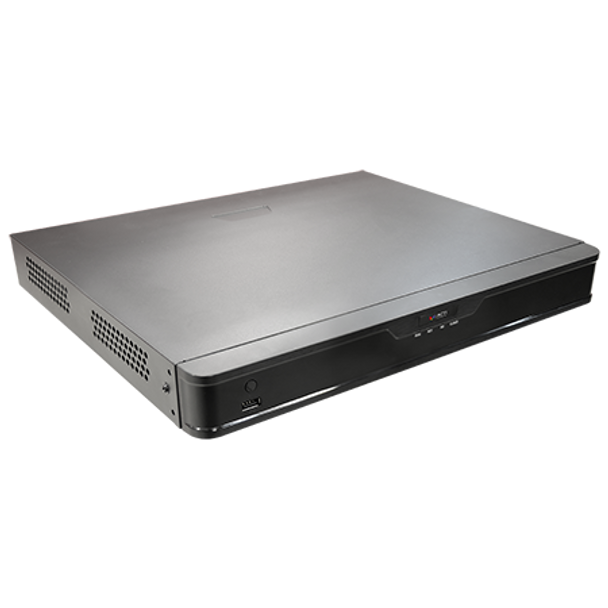

ACTi ZNR-220P 16-Channel Desktop Standalone NVR with 16-port PoE Connectors 12MP

(No reviews yet) Write a Review
SKU:
ZNR-220P
UPC:
888034010031
MPN:
ZNR-220P
Price: $1,059.00

Please Contact us today for Availability.

  • Ph: 844-688-7600
  • online@affinitechinc.com
  • Live Chat

    • Description

    ACTi ZNR-220P 16-Channel Desktop Standalone NVR with 16-port PoE Connectors 12MP

    16-Channel 2-Bay Desktop Standalone NVR with 16-port PoE Connectors, Recording Throughput 160 Mbps, Instant Playback, HDMI and VGA Port, Remote Access, Video Export via USB, 16-Channel Synchronized Playback, Plug & Play with Built-in DHCP Server, 2-Bay (Storage Disks not included), Audio, DI/DO, AC 100-240V

    Device


    Product Type Standalone NVR
    Maximum Resolution 12MP
    Maximum Number of Video Devices 16
    Maximum Number of Clients Local: 1, Remote: 2

    Hardware


    CPU Hi3536

    License


    License required No
    Free License 16

    Live View


    Local Live View performance 4ch (up to 20 fps at 12MP)
    4ch (up to 30 fps at 4K 3840 x 2160)
    8ch (up to 30 fps at 4MP)
    16ch (up to 30 fps at 2MP 1920 x 1080)
    Digital Zoom Yes
    Event Status Display event status upon alarm or upon connection loss or recovery between server and client
    Instant Playback Instant Playback in live view window

    PTZ


    PTZ Control PTZ Control, Speed Control

    Video


    Compression H.265, H.264
    Maximum Frame Rate vs. Resolution 20 fps at 4072 x 3076
    30 fps at 3840 x 2160
    20 fps at 2688 x 1520
    25 fps at 1920 x 1080
    25 fps at 1280 x 720

    Audio


    Audio Type 2-way, Line-in, Line-out

    Network


    Ethernet Port Total ports: 17 port(s)
    Non-PoE: 1 port(s), Ethernet (10/100/1000 Base-T), RJ-45 connector
    PoE: 16 port(s), Ethernet (10/100 Base-T), RJ-45 connector

    Recording


    Scheduled Recording Yes
    Event Recording Yes
    Manual Recording Yes
    Maximum Recording Throughput 160 Mbps

    Search & Playback


    Playback Control Continuous forward and backward playback with speeds 1/8x, 1/4x, 1/2x, 1x, 2x, 4x, 8x, 16x, 32x, 64x, 128x, 256x, pause, stop
    Synchronized Playback 16 channels
    Video Export MP4

    Event


    Event Trigger [Video Device]: Video motion detection, External device through digital input, Sound detection, Intelligent event detection (Intrusion Detection, Tampering Detection)

    System


    Permission control 128 Remote users, Customizable permissions for user groups
    Client PC Operating System Windows 7
    Server Operating System Embedded Linux
    USB 1-Port USB 2.0, 1-Port USB 3.0
    Language English

    Integration


    ONVIF Compliant Yes
    Web Browser IE 10 or newer

    Storage


    Storage Bay SATA, Max. 2 Disk(s)
    Maximum Recording Capacity 8TB x2
    RAID Level No

    Interface


    Digital Input/Output 4/1
    Local Access HDMI/VGA monitor, USB Mouse

    General


    PoE Output Maximum 30 Watts per port
    PoE Power Budget Maximum 240 W
    Power Source AC 100-240V
    Power Consumption 20 W (AC)
    Weight 2480g (5.47lb)
    Dimensions (W x H x D): 380mm x 315mm x 46mm (15" x 12.4" x 1.8")
    Operating Temperature -10°C ~ 55°C (14°F ~ 131°F)
    Operating Humidity 10% - 90% RH
    Remote Access Web Client
    Approvals CE, FCC
    Warranty 2 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty
    View AllClose

    Additional Information

    Data Sheet:
    ZNR-220P
