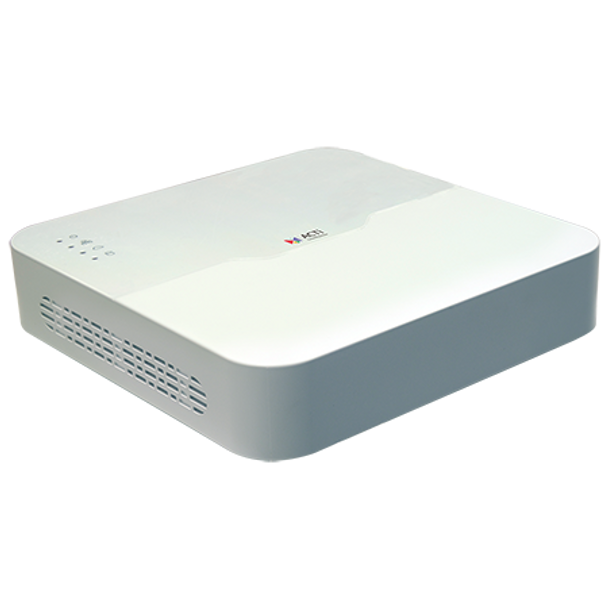

ACTi ZNR-120P 4-Channel Mini Standalone NVR with 4-port PoE Connectors

(No reviews yet) Write a Review
SKU:
ZNR-120P
UPC:
888034010017
MPN:
ZNR-120P
MSRP: $330.00
Price: $297.00
— You save $33.00

Description

ACTi ZNR-120P 4-Channel Mini Standalone NVR with 4-port PoE Connectors

4-Channel 1-Bay Mini Standalone NVR with 4-port PoE Connectors, Recording Throughput 40 Mbps, Instant Playback, HDMI and VGA Port, Remote Access, Video Export via USB, 4-Channel Synchronized Playback, Plug & Play with Built-in DHCP Server, 1-Bay (Storage Disks not included), Audio, DC 48V

Device


Product Type Standalone NVR
Maximum Resolution Local: up to 8MP; Remote: up to12MP
Maximum Number of Video Devices 4
Maximum Number of Clients Local: 1, Remote: 2

Hardware


CPU Hi3536

License


License required No
Free License 4

Live View


Digital Zoom Yes
Event Status Display event status upon alarm or upon connection loss or recovery between server and client
Instant Playback Instant Playback in live view window

PTZ


PTZ Control PTZ Control, Speed Control

Video


Compression H.265, H.264
Maximum Frame Rate vs. Resolution 30 fps at 3840 x 2160
20 fps at 2688 x 1520
25 fps at 1920 x 1080
25 fps at 1280 x 720

Audio


Audio Type 2-way, Line-in, Line-out

Network


Ethernet Port Total ports: 5 port(s)
Non-PoE: 1 port(s), Ethernet (10/100 Base-T), RJ-45 connector
PoE: 4 port(s), Ethernet (10/100 Base-T), RJ-45 connector

Recording


Scheduled Recording Yes
Event Recording Yes
Manual Recording Yes
Maximum Recording Throughput 40 Mbps

Search & Playback


Playback Control Continuous forward and backward playback with speeds 1/8x, 1/4x, 1/2x, 1x, 2x, 4x, 8x, 16x, 32x, 64x, 128x, 256x, pause, stop
Synchronized Playback 4 channels
Video Export MP4

Event


Event Trigger [Video Device]: Video motion detection, External device through digital input, Sound detection, Intelligent event detection (Intrusion Detection, Tampering Detection)

System


Permission control 128 Remote users, Customizable permissions for user groups
Client PC Operating System Windows 7, Windows 8, Windows 10
Server Operating System Embedded Linux
USB 2-Port USB 2.0
Language English

Integration


ONVIF Compliant Yes
Web Browser IE 10 or newer

Storage


Storage Bay SATA, Max. 1 Disk(s)
Maximum Recording Capacity 8TB x1
RAID Level No

Interface


Local Access USB Mouse

General


PoE Standard IEEE 802.3af, IEEE 802.3at
PoE Output Maximum 30 Watts per port
PoE Power Budget Maximum 54 W
Power Source DC 48V
Power Consumption 8 W (DC)
Weight 590g (1.3lb)
Dimensions (W x H x D): 42mm x 205mm x 205mm (1.7" x 8.1" x 8.1")
Operating Temperature -10°C ~ 55°C (14°F ~ 131°F)
Operating Humidity 10% - 90% RH
Remote Access Web Client
Approvals CE, FCC
Warranty 2 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty
View AllClose

Additional Information

Data Sheet:
ZNR-120P
