ACTi

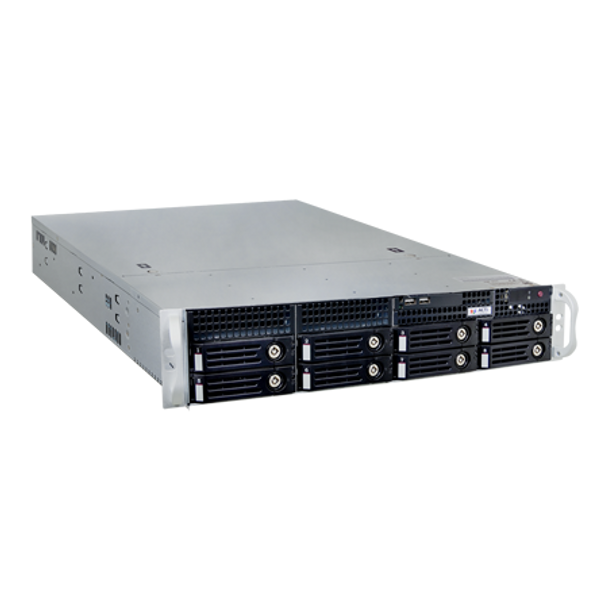

ACTi INR-407 256-Channel RAID Rackmount Standalone NVR

(No reviews yet) Write a Review
SKU:
INR-407
UPC:
888034013445
MPN:
INR-407
Price: $8,797.00

Please Contact us today for Availability.

  • Ph: 844-688-7600
  • online@affinitechinc.com
  • Live Chat

    • Description

    ACTi INR-407 256-Channel RAID Rackmount Standalone NVR

    256-Channel 8-Bay RAID Rackmount Standalone NVR with Recording Throughput 550 Mbps, Instant Playback, e-Map, HDMI, DVI and Display port, Remote Access, Video Export, 64-Channel Synchronized Playback, 64-channel free license included (for ACTi video devices) and additional license required (for integration with POS, access control and extended devices), Hardware RAID 0,1,5,6, 10, 50, 60, 8-Bay (Storage Disks not included), Audio, AC 100-240V

    Device


    Product Type Standalone NVR
    Maximum Resolution Support all ACTi cameras in all resolutions
    Maximum Number of Video Devices 256
    Maximum Number of POS devices 256 (requires additional license)
    Maximum Number of Access Control and Network I/O devices 256 (requires additional license)
    Maximum Number of Clients Local: 1, Remote: 5

    Hardware


    CPU Intel Core i7-7700
    RAM 16GB, DDR4, 2666MT/s

    License


    License required Yes
    Free License 64 (64 channels for ACTi and 1 channel for third-party video device)

    Live View


    Display Layout Mode Local: 1, 3, 4, 5, 6, 8, 9, 10, 12, 16
    Remote (IE client): 1, 3, 4, 5, 6, 8, 9, 10, 12, 16, 18, 24, 25, 35, 36, 48, 49, 64
    Remote (Lite web client): 1, 3, 4, 5, 6, 8, 9, 10, 12, 16
    Remote (Workstation): 1, 3, 4, 5, 6, 8, 9, 10, 12, 16, 18, 24, 25, 35, 36, 48, 49, 64, 81, 100, 121, 144
    Fisheye Dewarping Yes
    Local Live View performance Please check "Standalone NVR Performance Validator" (http://www.acti.com/SANVRPerformance)
    Digital Zoom Yes
    Event Status Display event status upon alarm or upon connection loss or recovery between server and client or when the allocated disk space is full
    Instant Playback Instant Playback in live view window
    Embedded websites in Live View Display and connect to pre-configured embedded website

    Map


    e-Map Yes
    Google Map Yes
    Layout Area maps with camera icons, small live view windows, hyperlinked
    Setup e-Map image upload, Google maps settings and preset management, camera positioning, vision angle and pointed direction of camera, view positioning, source positioning, extended devices for Point-of-sale (POS), Access Control, Network I/O
    PTZ Mode Mouse PTZ mode to control e-Map video streams

    PTZ


    PTZ Control PTZ Control, Speed Control, 32 preset points
    Joystick USB based joystick supported

    Video


    Compression H.265, H.264, MPEG-4, MJPEG
    Hardware Accelerated Decoding Yes (for workstation PC only), H.264, H.265
    Built-in Analytics Visual Tracking

    Audio


    Audio Type 2-way, Mic-in, Line-out

    Network


    Network Protocol & Service IPv4/v6, TCP, UDP, DHCP Client, HTTP, HTTPS, DNS, NTP, RTP, RTSP, SMTP, FTP, ICMP, ARP, UPnP, LDAP (client), iSCSi
    Ethernet Port 2 x Ethernet (1000 Base-T), RJ-45 connector

    Recording


    Scheduled Recording Yes
    Event Recording Yes
    Manual Recording Yes
    Event Speed-up Recording Yes
    Dual Stream Management Yes
    Maximum Recording Throughput 550 Mbps

    Search & Playback


    Playback Control Continuous forward and backward playback with speeds (1/64, 1/32, 1/16, 1/8, 1/4, 1/2, 1, 2, 4, 8, 16, 32, 64, 128, 256) or frame-by-frame, pause, stop
    Synchronized Playback 9 channels (Local), 64 channels (Remote)
    Recording Search Search video recordings by time, events, channels, bookmarks, notifications and listed as clickable time-based thumbnails for full-size view and snapshot download
    Smart Search Smart search of recorded video by Motion Detection and Tamper
    Video Export RAW, AVI, MP4, EXE, GPU Hardware accelerated video export supported with AVI format
    Snapshot Export BMP, JPEG, PNG

    Event


    Video Push Support Video Push from ACTi Mobile Client devices
    Event Trigger [NVR]: Disk full, Disk not found, Disk is available, S.M.A.R.T. Failure and Normal, Schedule service start and stop, Video Push start and stop, Time Backward, CPU limit exceeded for Server PC, CPU limit exceeded for NVR services, GPU Loading Detection for workstation only, Memory limit exceeded for Server PC and NVR services, Network Send/Receive Limit Exceeded for Server PC.

    [Video Device]: Video motion detection, Passive IR sensor, External device through digital input, Sound detection, Intelligent event detection, Video Push start and stop, Video loss and recovery, Disk Write Failure and Available.

    [Extended Device]: Point-of-sale (POS) status, Network I/O status, Access Control status
    Event Response Pop-up window with live video and event confirmation activation, Switch to hotspot window, Switch to customize view, Command a PTZ device to go to a preset point, Play alert sound, Activate external device through digital output, Execute system command to activate other programs, Upload video or snapshot to FTP server, E-mail notification with snapshots, Push notification, Send Snapshot to Line Messenger (v.3.0.16)

    Redundancy Server


    Redundancy Service Yes, N-to-N, N+1 (With limited functions when NVR 3 server acts as Redundancy server)

    System


    Permission control Unlimited number of users, Active Directory, Customizable permissions for user groups, Account lockout, Automatic logout after idle, Playback password protected, Password validity period, Password Expiration Notification
    Client PC Operating System Windows 7 SP1, Windows 8.1, Windows 10, Windows Server 2008 R2 SP1, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
    Server Operating System Windows 10 IoT
    Mobile Client Program Mobile device application (ACTi Mobile Client) supports Live View, PTZ Control, Video Push, Supported device(s) iOS, Android device
    USB 4-Port USB 2.0, 4-Port USB 3.0
    Language Multi-Language

    Integration


    Unified Solution Fully compatible with ACTi cameras, encoders, central management system, TV wall and intelligent video surveillance software
    GPS Position Manual setting
    Edge Recording Automatically restore the lost videos from the memory card of camera to NVR server via ONVIF (Profile G) or proprietary protocol integrations after network connection recovery.
    ONVIF Compliant Yes, Profile S (contains the officially ONVIF conformant software NVR 3 Corporate)
    Web Browser IE 11 (Please verify that your computer meets the minimum system requirements for Internet Explorer from Microsoft website.), Lite web client: Microsoft Edge 80.0.361.66 (Normal mode) or newer, Google Chrome 71.0.3578 or newer, Firefox 64.0.2 or newer, Apple Safari 12.0.2 or newer
    Third-party Integration Point of Sale (POS), Access Control, Network I/O, Parking Management Station (PMS), (Various optional integrations requiring additional license)

    Storage


    Supported Storage Technology NAS, SAN
    System Drive SSD, 256GB
    Storage Bay SATA, Max. 8 Disk(s) (without storage disks)
    Hot Swappable Drive Yes
    HDD Size 3.5"
    Maximum Recording Capacity 22TB x8
    RAID Level Hardware RAID 0, 1, 5, 6, 10, 50, 60
    Supported Storage Video Recording: SATA disk, iSCSI
    Video Exporting: iSCSI, USB

    Interface


    Serial Port 1 x RS-232
    External Storage Interface iSCSI, USB
    Expansion Slots Available 1 x PCIe 3.0 (x16)
    3 x PCIe 3.0 (x1)
    Local Access USB joystick, keyboard & mouse
    Local Display Interface HDMI x 1, DVI x 1, Display Port x 1

    General


    Power Source AC 100-240V
    Power Supply 500W
    Weight 11300g (24.912lb)
    Dimensions (W x H x D): 482.6mm x 88mm x 571.5mm (19" x 3.47" x 22.5")
    Rack Space: 2U
    Bundled Accessories Rackmount rails, Power cord
    Mount Type Rack mounts
    Fan Yes
    Operating Temperature 10°C ~ 35°C (50°F ~ 95°F)
    Operating Humidity 8% - 90% RH
    Remote Access Workstation, Web Client, Mobile Client
    Approvals CE, FCC, UL (for built-in power adapter)
    Color Silver
    Warranty 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty
    View AllClose

    Additional Information

    Data Sheet:
    INR-407
