ACTi

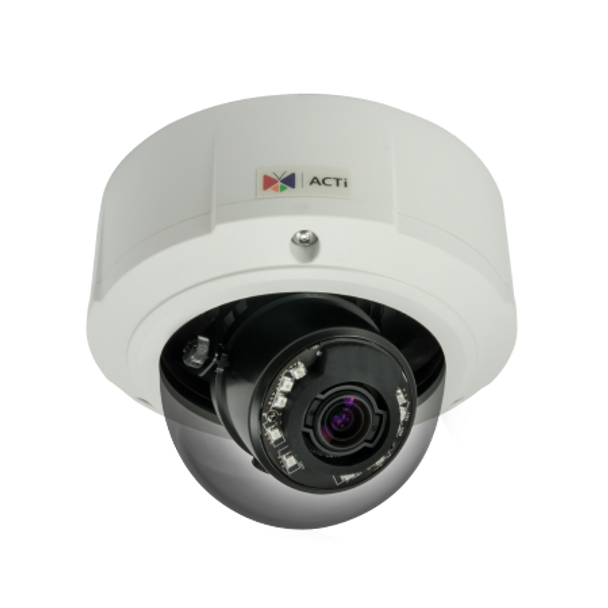

ACTi B82 5MP with D/N, Adaptive IR, Basic WDR, 2.4x Zoom Lens

(No reviews yet) Write a Review
SKU:
B82
UPC:
888034006966
MPN:
B82
  • ACTi B82 5MP with D/N, Adaptive IR, Basic WDR, 2.4x Zoom Lens
  • ACTi B82 5MP with D/N, Adaptive IR, Basic WDR, 2.4x Zoom Lens
  • ACTi B82 5MP with D/N, Adaptive IR, Basic WDR, 2.4x Zoom Lens
Price: $891.00

Please Contact us today for Availability.

  • Ph: 844-688-7600
  • online@affinitechinc.com
  • Live Chat

    • Description

    ACTi B82 5MP with D/N, Adaptive IR, Basic WDR, 2.4x Zoom Lens

    5MP Outdoor Zoom Dome with D/N, Adaptive IR, Basic WDR, 2.4x Zoom lens, 9-22mm/F1.6-2.3 (HOV:29.5°-13°), DC iris, Auto Focus, H.264, 1080p/30fps, 2D+3D DNR, Audio, MicroSDHC/MicroSDXC, PoE/DC12V, IP67, IK10, DI/DO

    Device


    Product Type Zoom Dome
    Maximum Resolution 5MP
    Application Environment Outdoor
    Image Sensor Progressive Scan CMOS
    Sensor Size 1/3.2 "
    Effective Pixels 2592(H) X 1944(V) (5.04 MP)
    Day / Night Yes
    Low Light Sensitivity Standard
    Minimum Illumination Color: 0.1 lux at F1.6 (30 IRE, 2400 K); B/W: 0 lux at F1.6 (IR LED on)
    Color to B/W Switch ISP based switch, configurable
    Mechanical IR Cut Filter Yes
    IR Sensitivity Range 700-1100nm
    IR LED Adaptive IR LED x 10 (850 nm)
    IR Working Distance 43.7m
    Electronic Shutter 1/5-1/2000 second (manual mode); 1/5-1/10000 second (auto mode)
    Horizontal Resolution (TV Lines) 1500 TVL
    S/N Ratio 52 dB

    Lens


    Focal Length Zoom, f9.0-22mm
    Aperture F1.6-F2.3
    Zoom Ratio 2.4x optical zoom
    Zoom Application Camera Installation, Auto Zoom by Event, Manual Operation
    Iris DC iris
    Focus Auto focus
    Lens Mount Board mount
    Horizontal Viewing Angle 29.5° - 13°
    Vertical Viewing Angle 21.9° - 9.8°
    Viewing Angle Adjustment Pan: -175°-175°, Tilt: 5°-170°, Rotation: -175°-175°

    PTZ


    Absolute Position Yes
    Pan, Tilt or Zoom protocol Visca, Pelco-D, Pelco-P, ACTi URL command

    Video


    Compression H.264 (Baseline/ Main/ High profile), MJPEG
    Maximum Frame Rate vs. Resolution 15 fps at 2592 x 1944
    15 fps at 2048 x 1536
    30 fps at 1920 x 1080
    30 fps at 1280 x 720
    30 fps at 800 x 600
    30 fps at 640 x 480
    15 fps at 320 x 240
    Multi-Streaming Simultaneous dual streams based on two configurations
    Bit Rate 28Kbps - 6Mbps (per stream)
    Bit Rate Mode Constant, Variable
    Wide Dynamic Range Basic WDR (74 dB)
    Image Enhancement White Balance, Brightness, Contrast, Automatic gain control
    Digital Noise Reduction 2D + 3D DNR
    Privacy Mask 4 configurable regions for each of 17 preset points
    Text Overlay Yes
    Server-based Analytics Object Line Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Smoke Detection, Heat Map, Dwell Time, Direction Detection, Automatic License Plate Recognition, People Queue Detection, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy)
    Image Orientation Flip, Mirror

    Audio


    Audio Type 2-way, Line-in, Line-out
    Audio Compression 8 kHz, 16 bit encoding, Mono, PCM, G.711

    Network


    Network Protocol & Service IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X
    Ethernet Port 1 x RJ-45 connector
    Security IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control

    Event


    Event Trigger Video motion detection (3 regions), External device through digital input, Sound detection,
    Event Response Notify control center, Go to Zoom preset point or preset tour, Change camera settings, Command other devices, E-mail notification with snapshots, Play the audio file, Push notification to mobile device, Save video to local storage, Upload video or snapshot to FTP server, Upload video to NVR server, Activate external device through digital output

    Integration


    Unified Solution Fully compatible with ACTi software
    Software Development Kit Yes
    GPS Position Manual setting
    Edge Recording Support (integration with NVR by ONVIF Profile G or proprietary protocol)*
    ONVIF Compliant Yes, Profile S, Profile G, Profile T, Profile Q
    GB28181 Compliant Yes
    Web Browser IE 11
    Auto Firmware Upgrade Yes

    Interface


    Audio Interface Terminal block
    Local Storage MicroSDHC, MicroSDXC Memory Card Slot (card not included, up to 256GB, Kingston or Sandisk only)
    Digital Input/Output 2/2
    Operating Button Reset Button

    General


    Power Source DC 12V, PoE Class 3 (IEEE802.3af)
    Power Consumption 4.8 W (PoE), 4.2 W (DC)
    Weight 1274g (2.809lb)
    Dimensions (Ø x H): 152.8mm x 114.5mm (6.0" x 4.5")
    Environmental Casing Weatherproof (IP67), Vandal proof (IK10)
    Mount Type Surface, Gang Box, Flush, Pendant, Converter for NPT Standard Mounts, Wall Mount, Pole Mount, Corner Mount
    Heater Yes
    Starting Temperature -30°C ~ 50°C (-22°F ~ 122°F) within 30 minutes
    Operating Temperature -40°C ~ 50°C (-40°F ~ 122°F)
    Operating Humidity 10% - 85% RH
    Approvals CE Class B, FCC Class B, EAC, CB, IP67, IK10, NEMA 4X, UL Listed (UL 60950-1)
    Real-time Clock (RTC) Yes
    Warranty 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty
    Comments * Edge Recording function is integrated with NVR 3 Corporate / NVR 3 Business / INR / GNR series.
